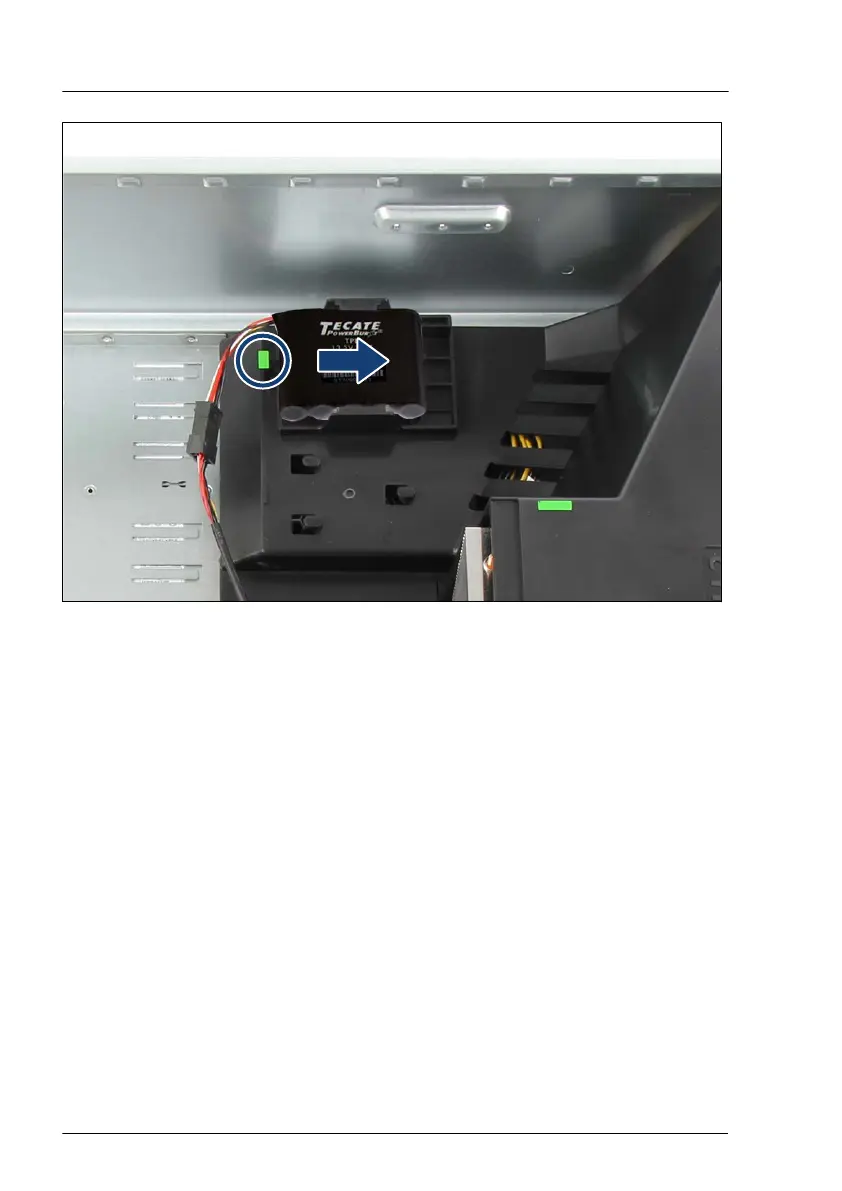

Figure 250: Example: installing the FBU345 on the system air duct
▶
Insert the holder into the chassis so that the three shoulder screw caps on
the chassis floor rest in the wide ends of the keyhole slots on the holder.
▶
Slide the holder in direction of the arrow
.
The shoulder screw caps on the chassis floor will lock in the narrow ends of
the keyhole slots on the holder.
▶
Ensure that the locking handle on the holder properly snaps in place (see
circle).
▶
If applicable, install the TFM, see "Installing a TFM" on page 372.
▶
Install the RAID controller, see "Installing an expansion card" on page 346.
