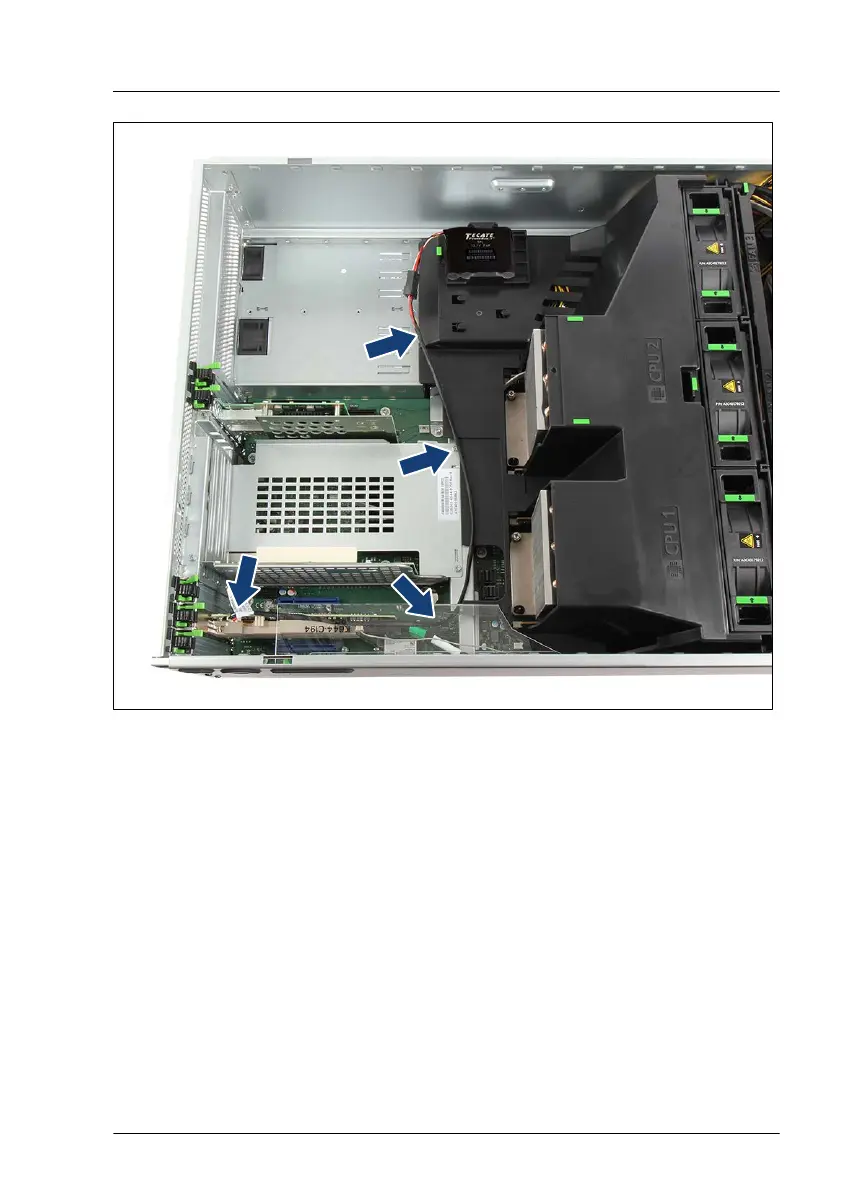

Figure 251: Example: routing the FBU adapter cable EP5x0i with FBU345
▶
Run the FBU adapter cable as shown.
Concluding steps
▶
"Reassembling" on page
68
.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
Expansion cards and backup units
TX2550 M5 Upgrade and Maintenance Manual 385
