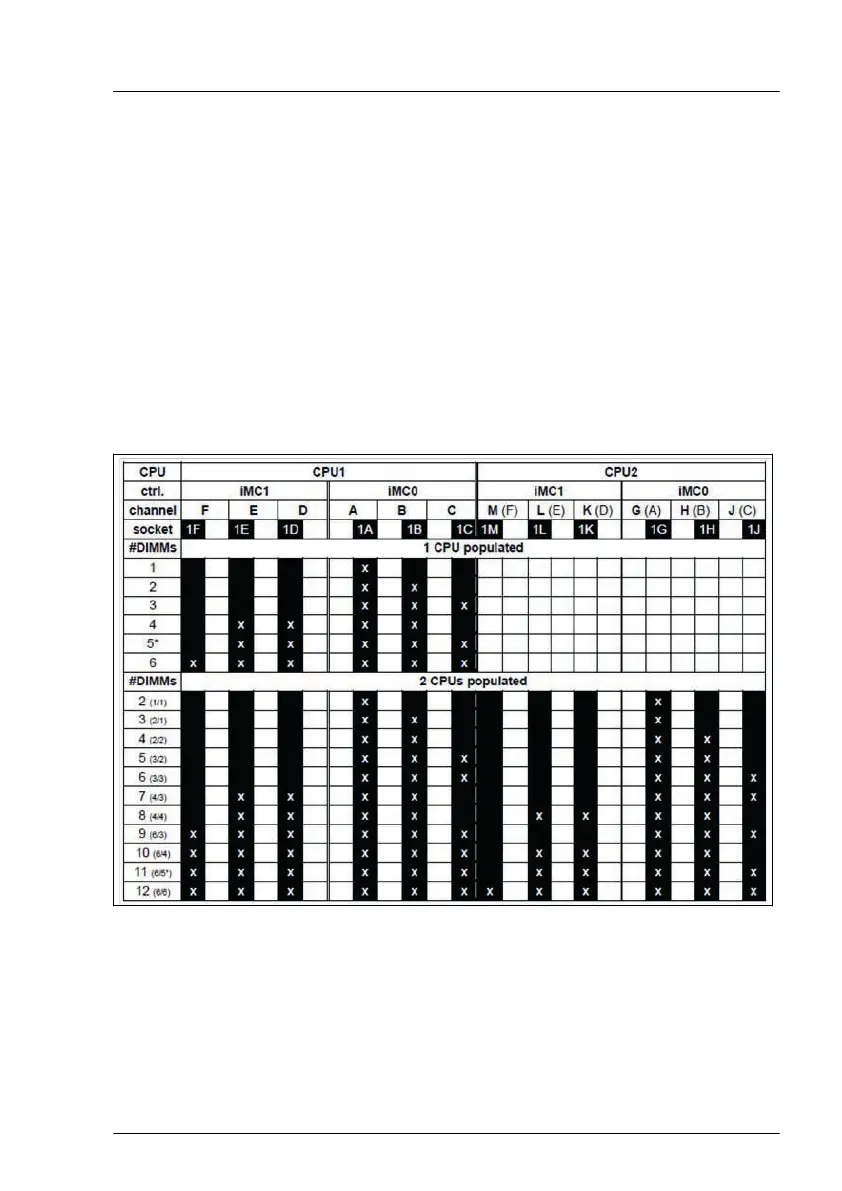

Independent Channel mode with identical DIMMs
–
Same letter represents identical DIMMs (capacity, rank).
–
Use a "balanced" platform configuration:
–
all available memory channels populated equally
– identical DIMMs in all locations (size/speed/rank)
–
Marked (*) quantity of DIMMs are not recommended because of unbalanced
configurations.
–
Unbalanced configurations can lead to significantly reduced bandwidth
because the system will fracture the memory space into multiple regions.
Main memory
TX2550 M5 Upgrade and Maintenance Manual 397
