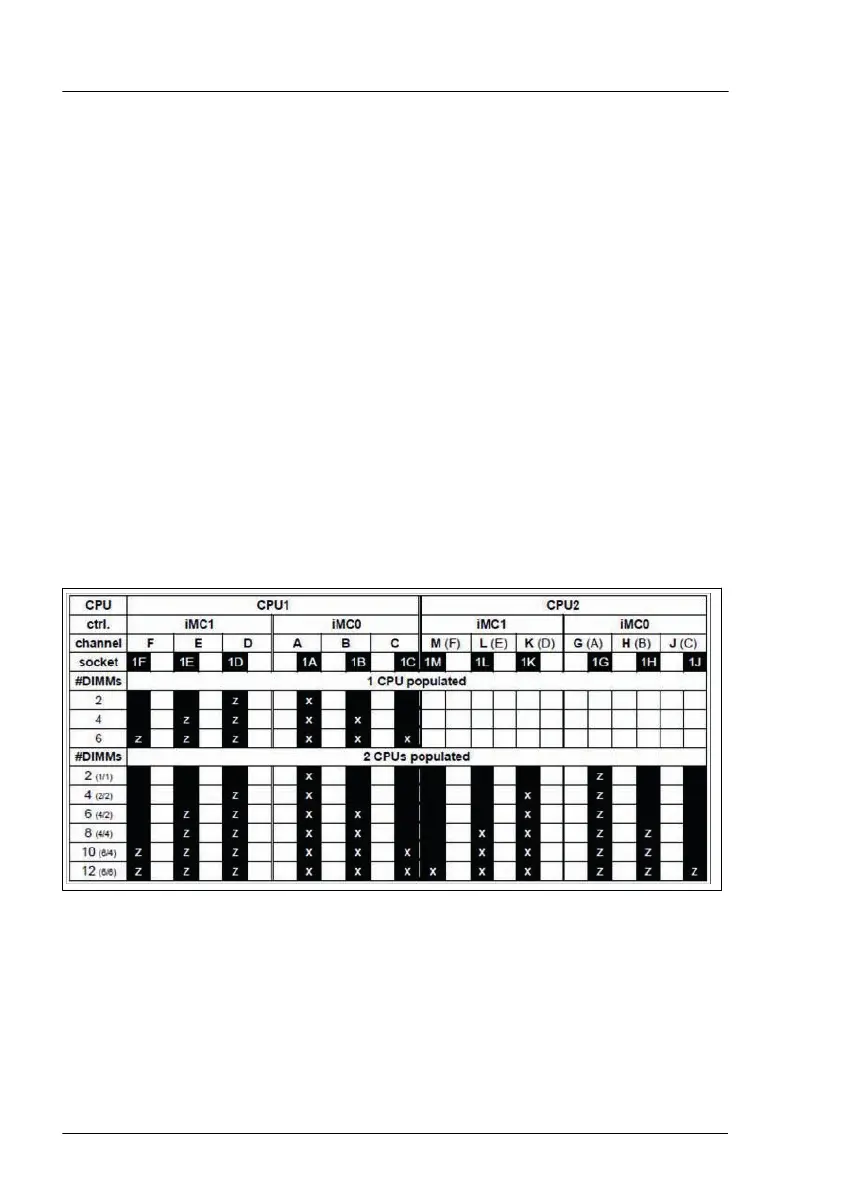

Independent Channel mode with different DIMMs
Same letter represents identical DIMMs (capacity, rank).
If using two dif
ferent DIMMs, use a "near-balanced" platform configuration:
all available memory channels and sockets populated equally
identical DIMMs in each "row", but different sized DIMMs in row #1 and
row #2
Marked (*) quantity of DIMMs are not recommended because of unbalanced
configurations.
Unbalanced configurations can lead to significantly reduced bandwidth
because the system will fracture the memory space into multiple regions.
Same quantity of both DIMMs are required on each CPU.
"x" must always be DIMM with more ranks than "z".
If both DIMMs have same number of ranks, "x" represents DIMMs with
higher capacity.
Mirrored Channel mode
Same letter represents identical DIMMs (capacity, rank).
Channels 1A/1B/1C must be populated with identical DIMMs.
Channels D-F must be populated accordingly
.
Main memory
