Removing accessible drive dummy covers
▶
Remove accessible drive filler covers from the required bays, see
"Removing accessible drive filler covers" on page 100.
▶
Remove the accessible drive covers, see "Removing accessible drive
covers" on page
101.
Installing mounting brackets to RDX backup drives
This section is not applied for Japan.
Backup drive mounting brackets are contained in mounting kit S26361-F3753-
E1 (to be ordered separately with the backup drive).
No new mounting brackets are available when replacing a backup drive
during service.
▶
If applicable, remove existing mounting brackets from the backup drive.

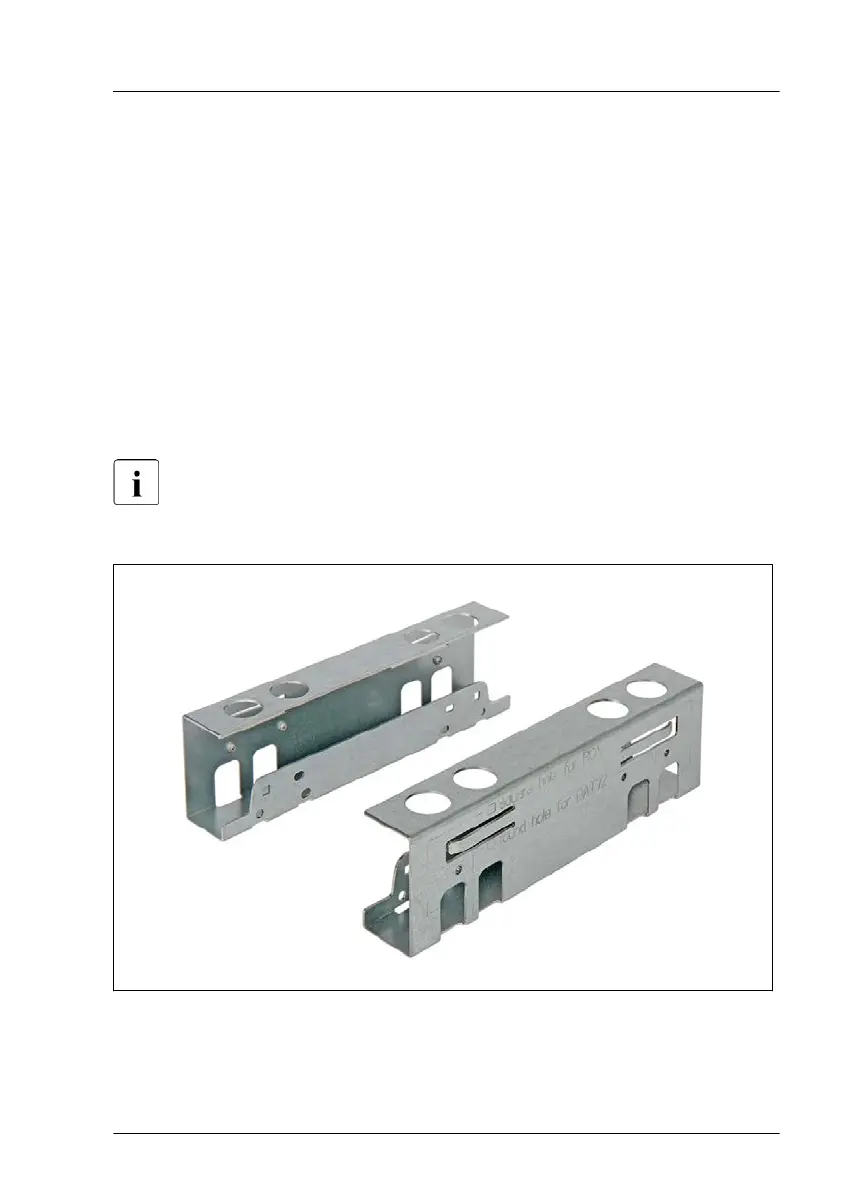

Figure 281: Backup drive mounting brackets
Accessible drives
TX2550 M5 Upgrade and Maintenance Manual 433
