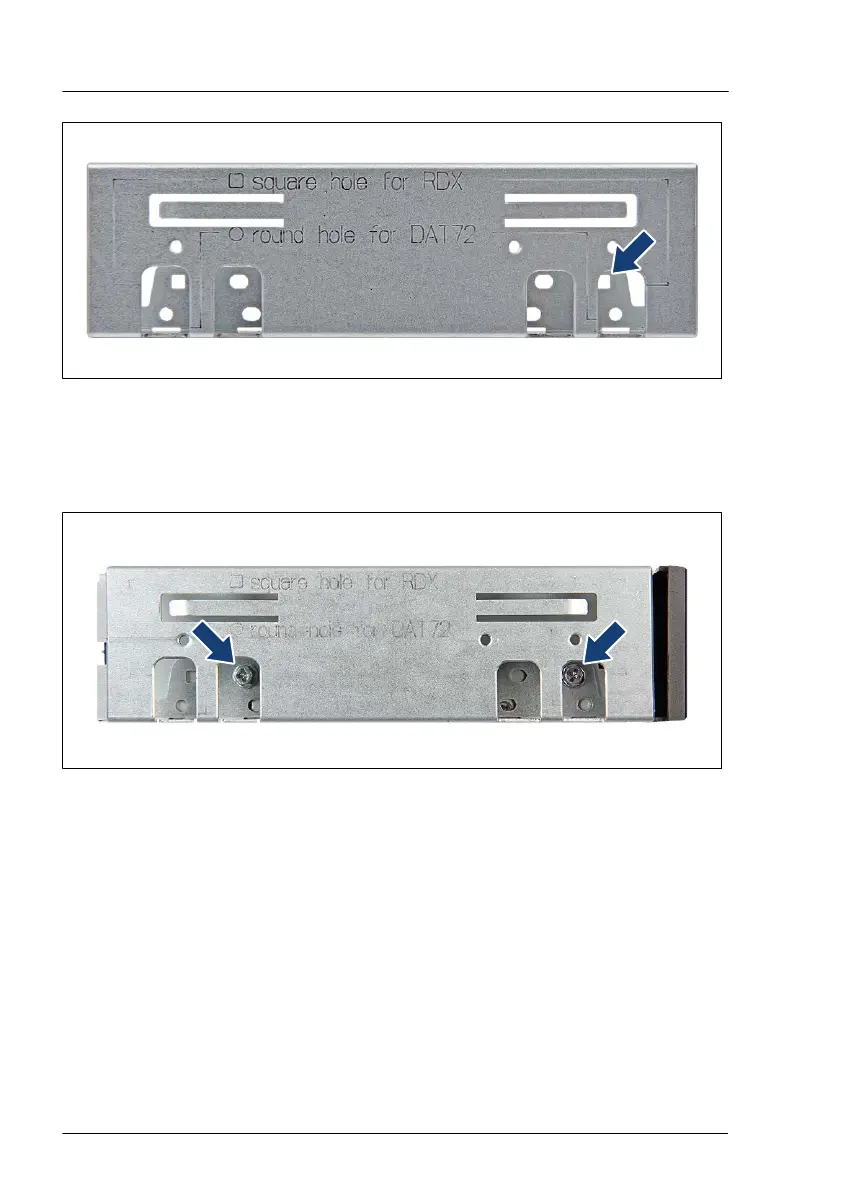

Figure 282: Screw holes on backup drive mounting brackets
▶
Note the screw hole description stamped onto the mounting bracket:
▶
Use the square screw hole for RDX backup drives (see blue arrow).
Figure 283: Securing mounting brackets to an RDX backup drive
▶
Fasten the backup drive mounting brackets to the RDX backup drive with
two screws per bracket as shown.
