Installing an accessible drive

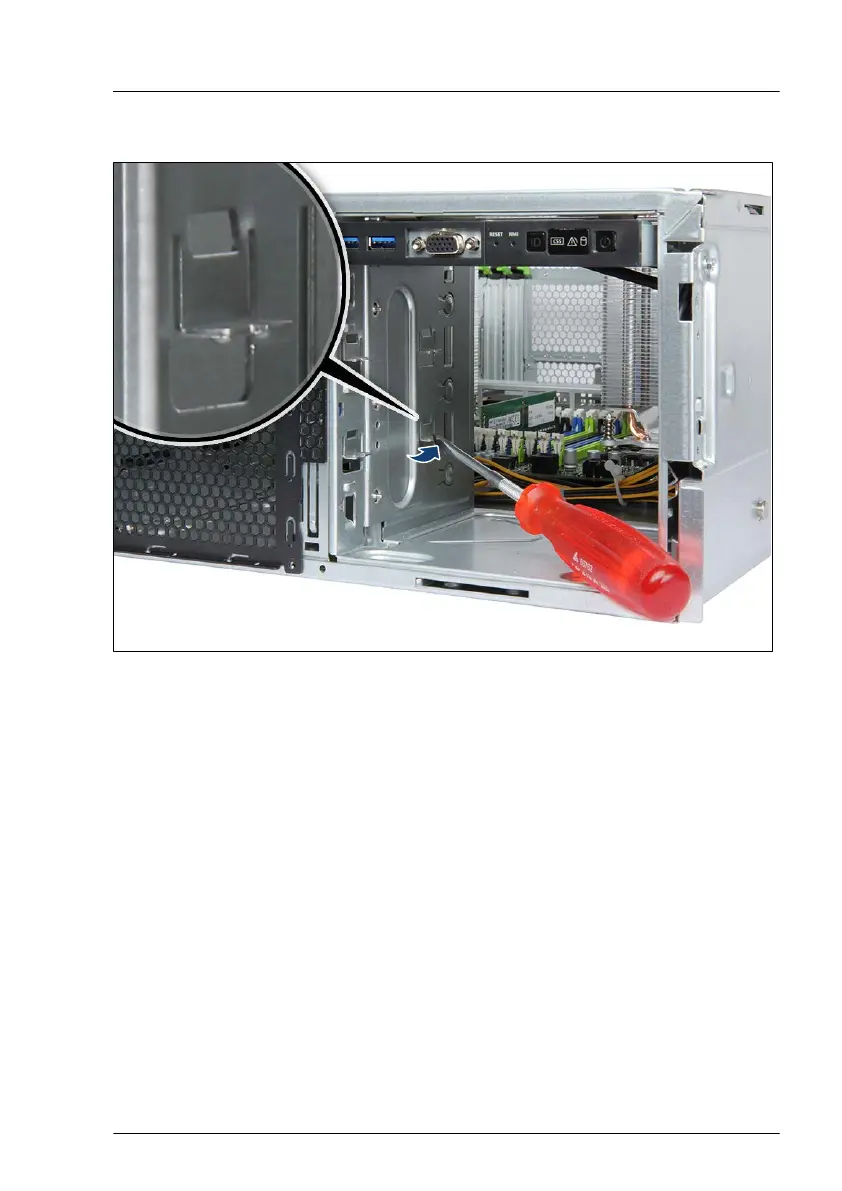

Figure 284: Mounting brackets in right position
▶
Ensure that the four mounting brackets in the desired accessible drive bay
have not been bent inwards as for installing HDD extension boxes. If
applicable, bend the mounting brackets back to the original positions (see
close-up).
▶
Open the locking bar, see
"Opening the accessible drive locking bar" on
page 96.
Accessible drives
TX2550 M5 Upgrade and Maintenance Manual 435
