Removing the 4x 3.5-inch HDD extension box
▶
Remove the 4x 3.5-inch HDD extension box, see "Removing the 4x 3.5-
inch HDD extension box" on page 281
.
Removing the ultraslim ODD from the extension box

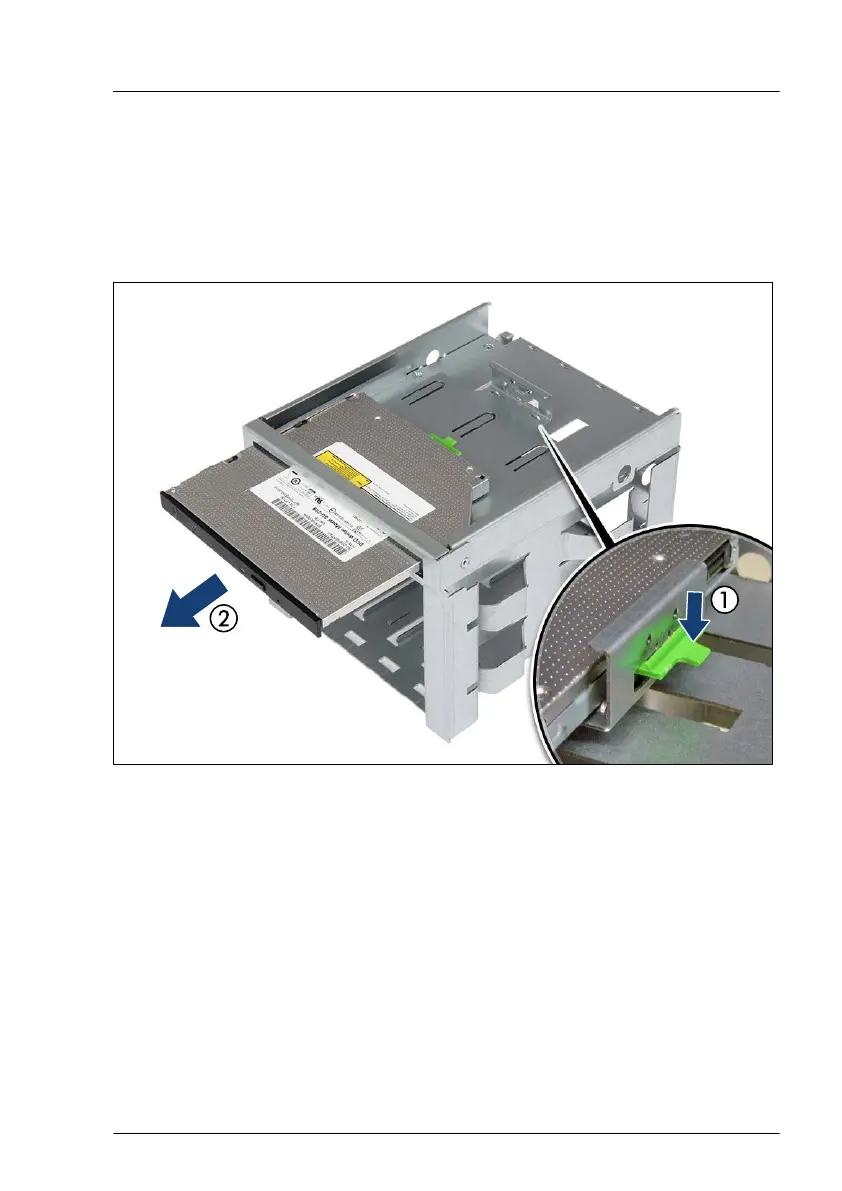

Figure 294: Removing the ultraslim ODD from the extension box
▶
Pull down the locking latch (1).
▶
Remove the ultraslim ODD (2).
Accessible drives
TX2550 M5 Upgrade and Maintenance Manual 451
