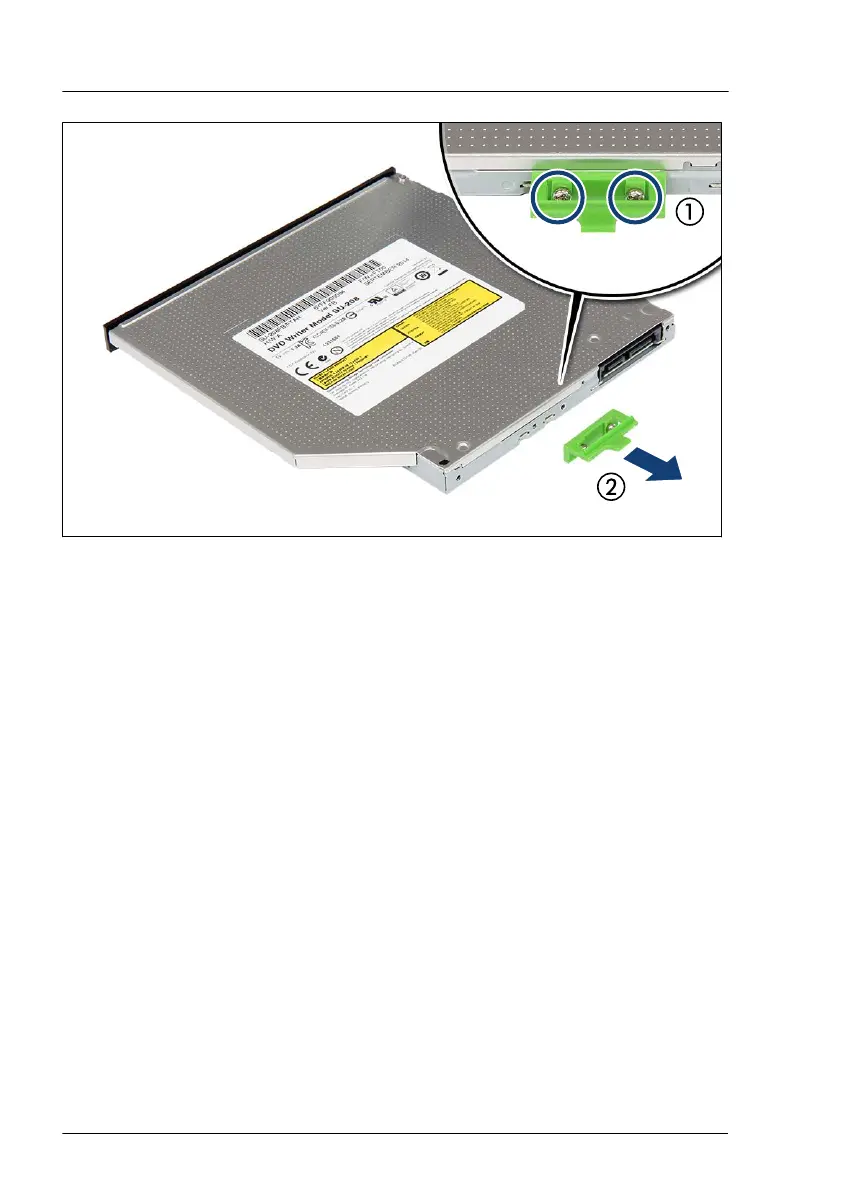

Figure 295: Removing the locking latch from the ultraslim ODD
▶
Remove the two screws (1).
▶
Remove the locking latch (2).
▶
If the removed ultraslim ODD is not to be replaced by a new drive:
▶
Fasten the locking latch to the ultraslim ODD with its two original screws
to the HDD cage (see Figure 290).
▶
Insert the ultraslim ODD dummy cover (see Figure 289).
Installing the 4x 3.5-inch HDD extension box
▶
Install the 4x 3.5-inch HDD extension box, see "Installing the 4x 3.5-inch
HDD extension box" on page
277
.
Concluding steps
▶
If applicable, install the expansion card, see "Installing an expansion card"
on page 346.
▶
Install the fan bridge, see "Handling the fan bridge" on page 92.
Accessible drives
