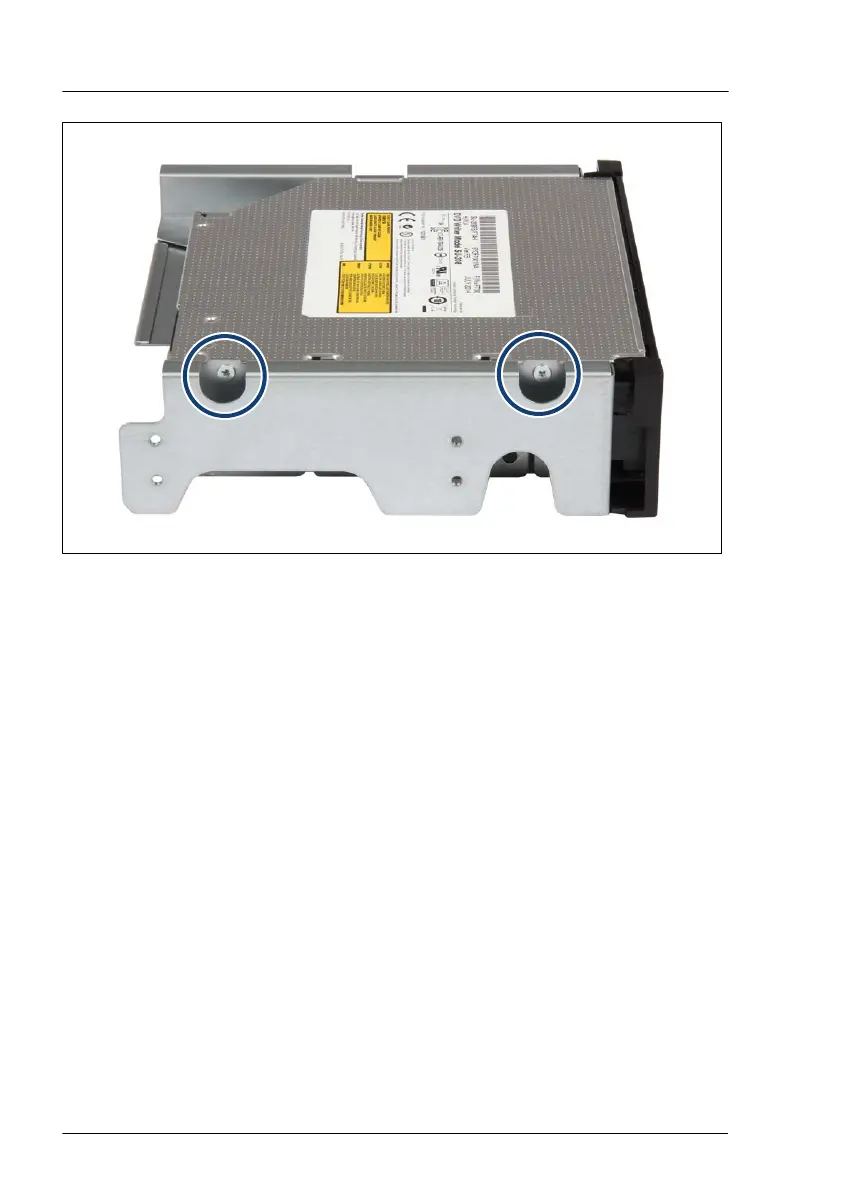

Figure 298: Installing the ultraslim ODD in the ultraslim ODD adapter (B)
▶
Fasten the ultraslim ODD to the ultraslim ODD adapter with two screws (see
circles).
▶
Connect the ODD power cable and the ODD signal cable to the ultraslim
ODD (see "Connecting cables to the ultraslim ODD").
Installing the ultraslim ODD adapter
▶
Install the ultraslim ODD adapter
, see "Installing accessible drives" on
page 432.
▶
Connect the SA
TA cable from the ultraslim ODD to the system board, see
Figure 286.
Concluding steps
▶
If applicable, install the expansion card, see "Installing an expansion card"
on page 346.
▶
Install the fan bridge, see "Handling the fan bridge" on page 92.
▶
If applicable, "Installing the riser module" on page 87.
