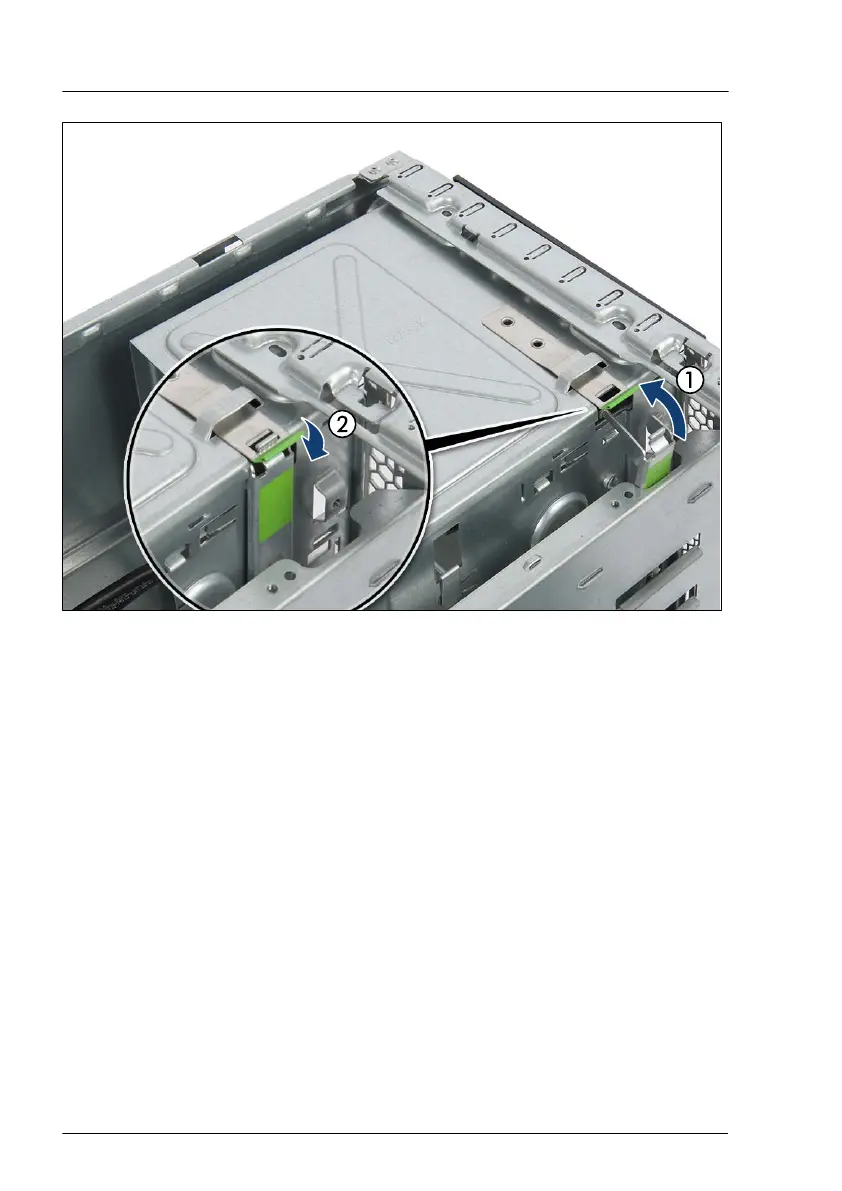

Figure 305: Closing the accessible drive locking bar (rack model)
▶
Fold in the locking bar (1) until it locks in place (2, see close-up).
Front panel
470 Upgrade and Maintenance Manual TX2550 M5
