Connecting front panel cables to the system board

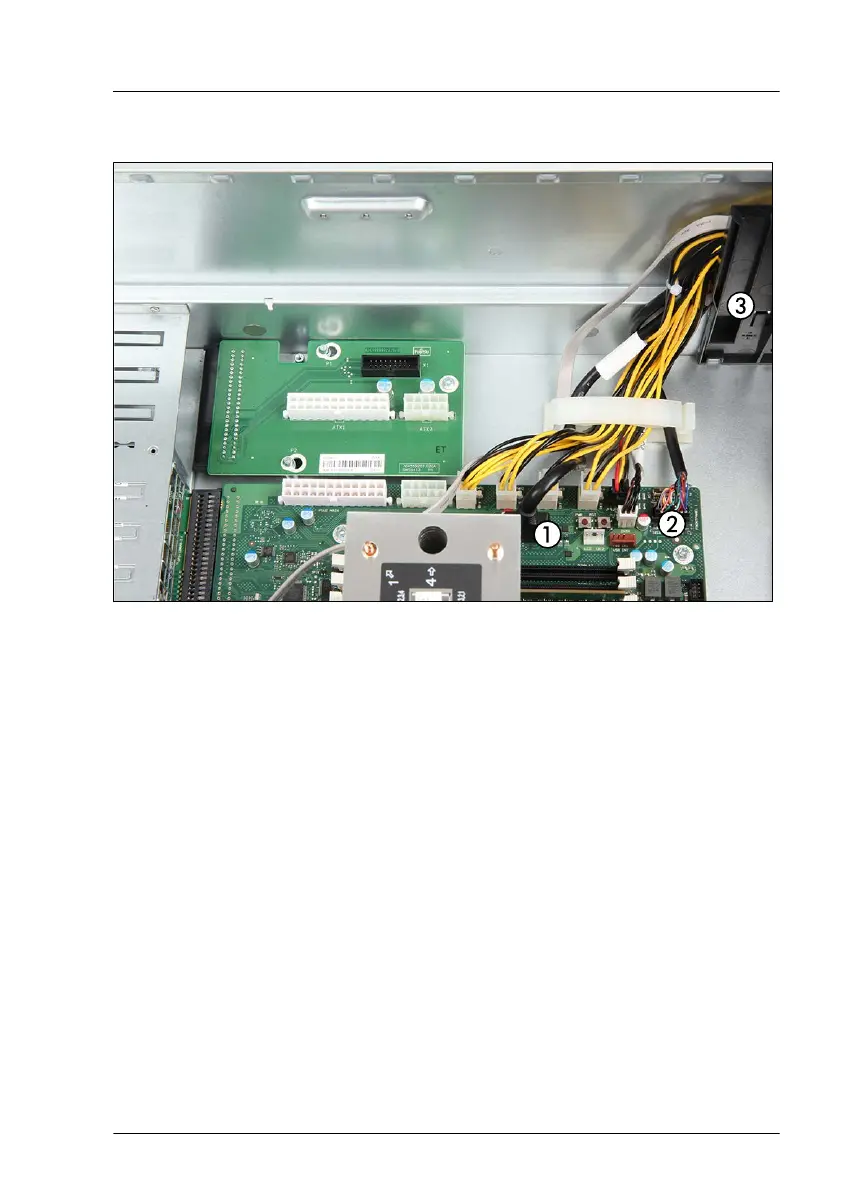

Figure 306: Connecting front panel cables to the system board
▶
Run the front panel cables through the cable guide (3).
▶
Connect the front USB cable to the system board (1).
▶
Connect the front panel cable to the system board (2).
Concluding steps
▶
Install the fan bridge, see "Handling the fan bridge" on page
92.
▶
"Installing the system air duct" on page
68.
▶
"Reassembling" on page 68.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
▶
"Verifying system information backup or restore" on page 114.
Front panel
