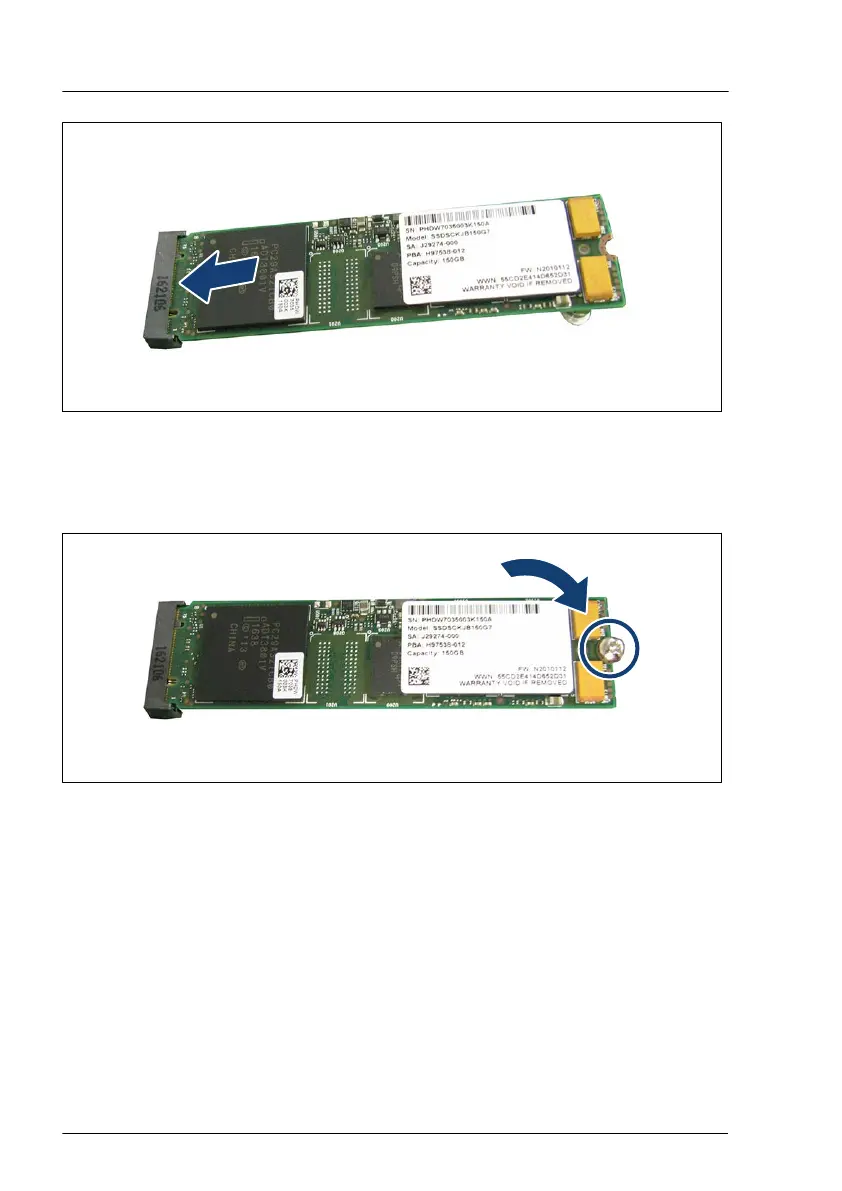

Figure 320: Installing the M.2 SSD
▶
With the label facing up, insert the M.2 SSD into the M.2 slot at a slight
angle.
Figure 321: Fastening the M.2 SSD
▶
Fasten the M.2 SSD with the screw (see circle).
Concluding steps
▶
If applicable, install the expansion card, see "Installing an expansion card"
on page
346
.
▶
"Installing the crossbar" on page 91.
▶
If applicable, install the riser module, see "Installing the riser module" on
page 87.
System board and components
494 Upgrade and Maintenance Manual TX2550 M5
