Preliminary steps
▶
"Shutting down the server" on page 49
.
▶
"Disconnecting the power cord" on page 50.
▶
"Getting access to the component" on page 51.
Removing the Dual microSD 64GB Enterprise

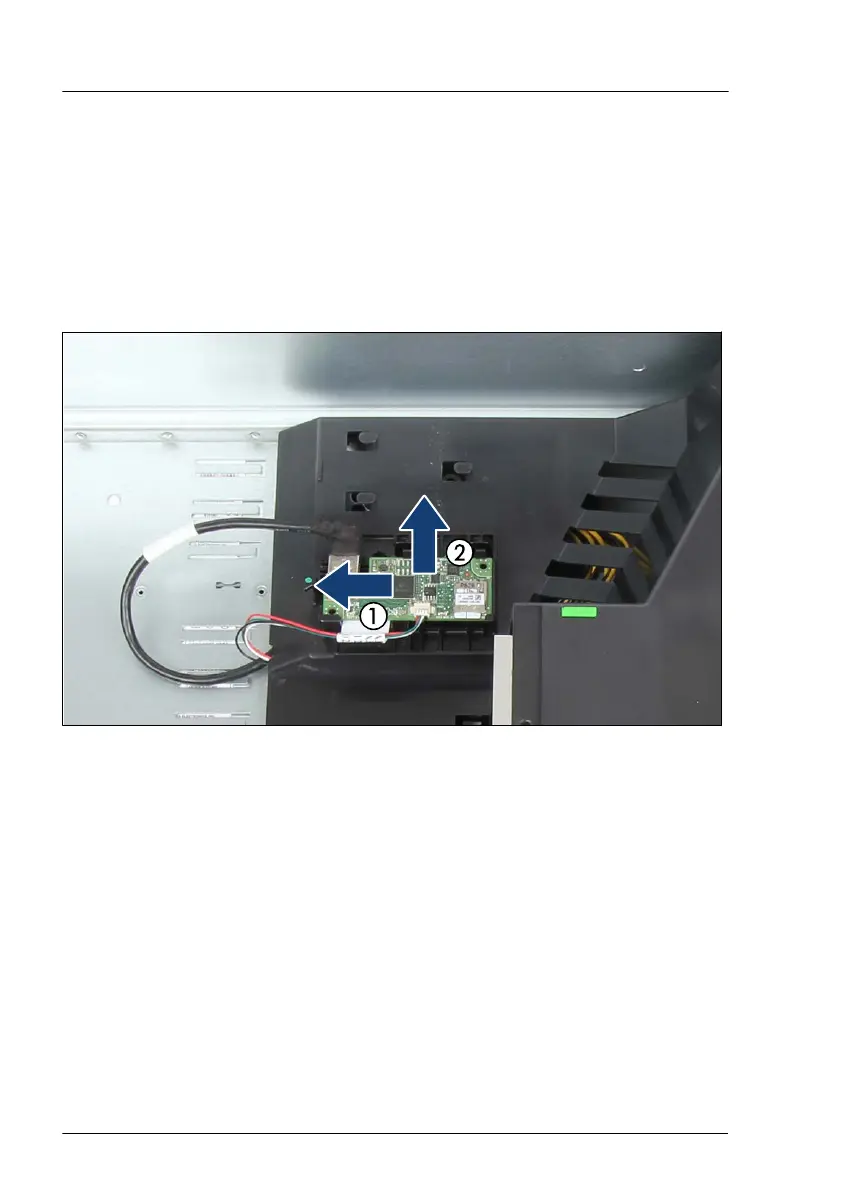

Figure 330: Removing the Dual microSD 64GB Enterprise from the system air duct
▶
Push the holder in direction of the arrow until it disengages (1).
▶
Remove the holder from the system air duct (2).
▶
Remove the system air duct, see "Removing the system air duct" on
page
67
.
System board and components
506 Upgrade and Maintenance Manual TX2550 M5
