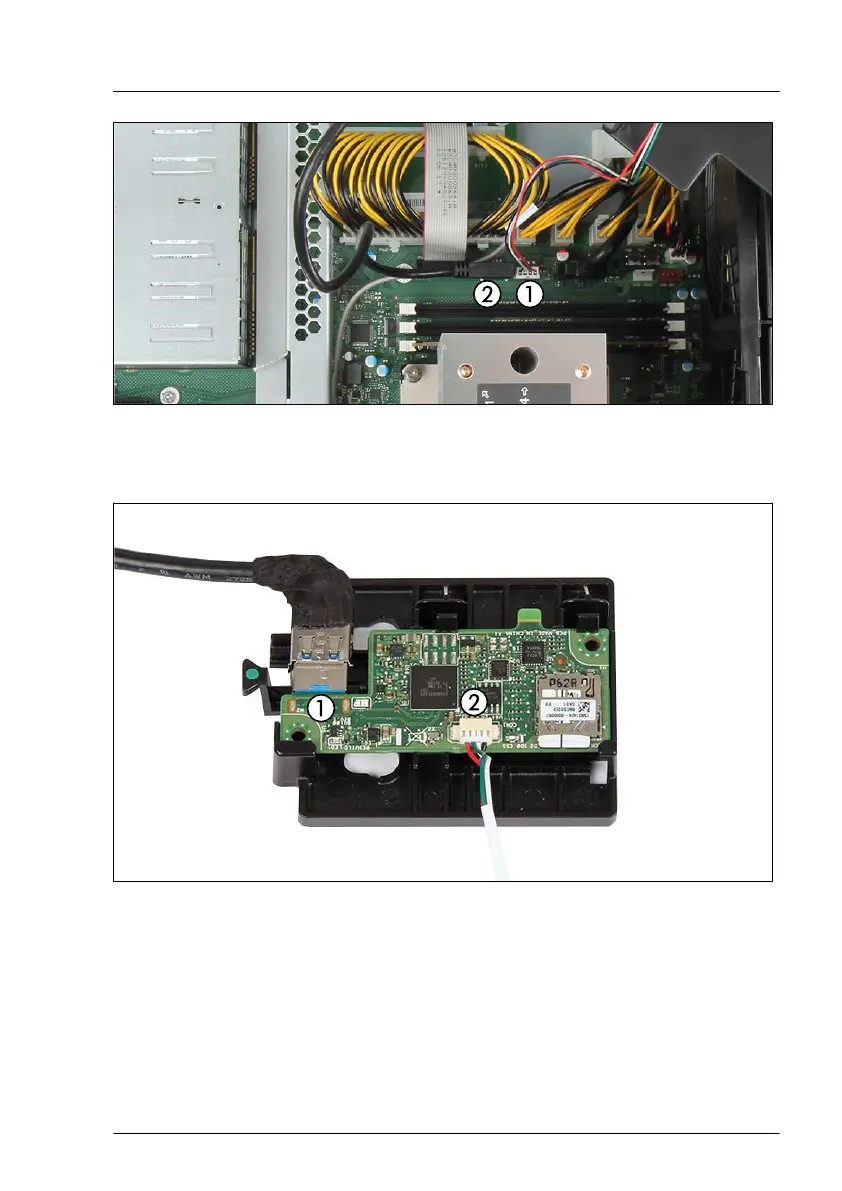

Figure 331: Disconnecting the cables from the system board
Disconnect both cables (C41, C42) from the system board (1, 2).
Figure 332: Disconnecting the cables from the Dual microSD 64GB Enterprise
Disconnect both cables (C41, C42) from the Dual microSD 64GB Enterprise
(1, 2).
System board and components
TX2550 M5 Upgrade and Maintenance Manual 507
