Fujitsu PRIMERGY TX2550 M5

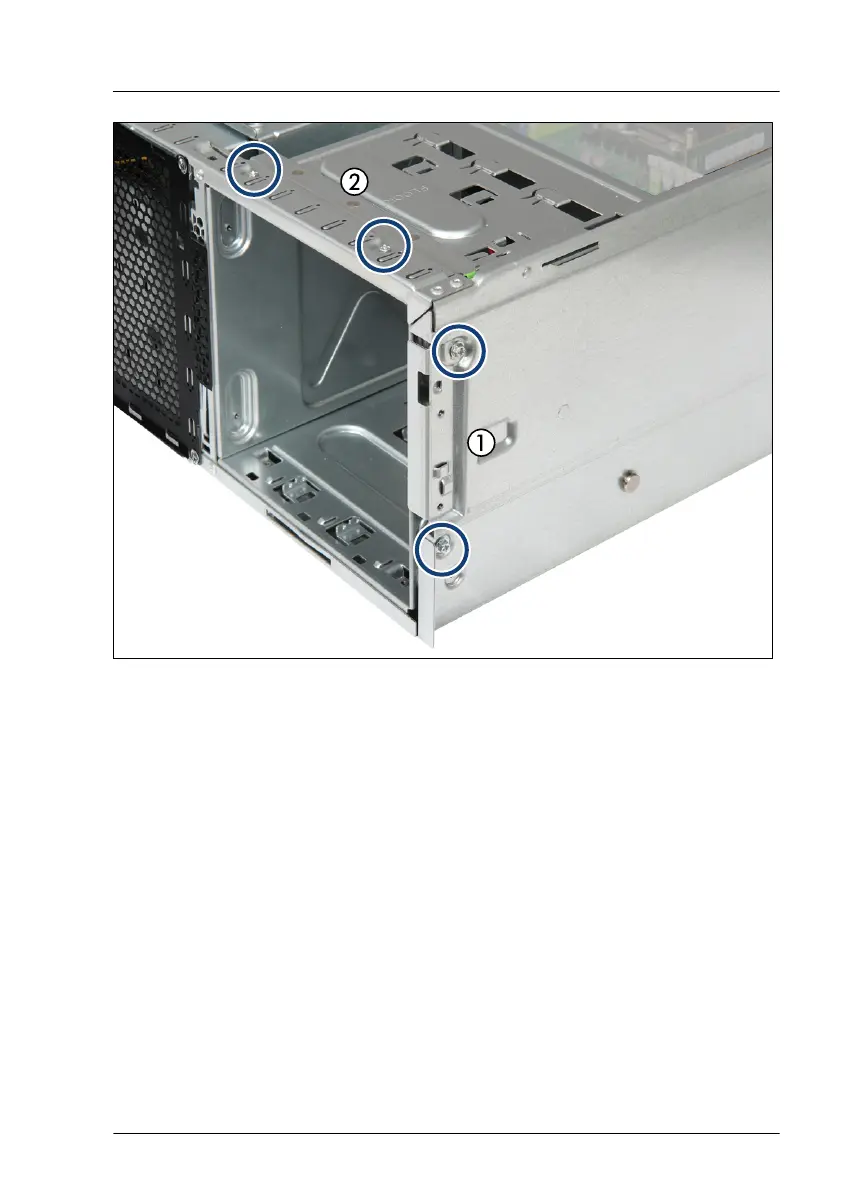

Figure 346: Removing the accessible drive cage (B)
▶
Remove two screws from the right chassis edge (1).
▶
Remove two screws from the top edge of the chassis (2).
Converting a floorstand model to a rack model
TX2550 M5 Upgrade and Maintenance Manual 535
