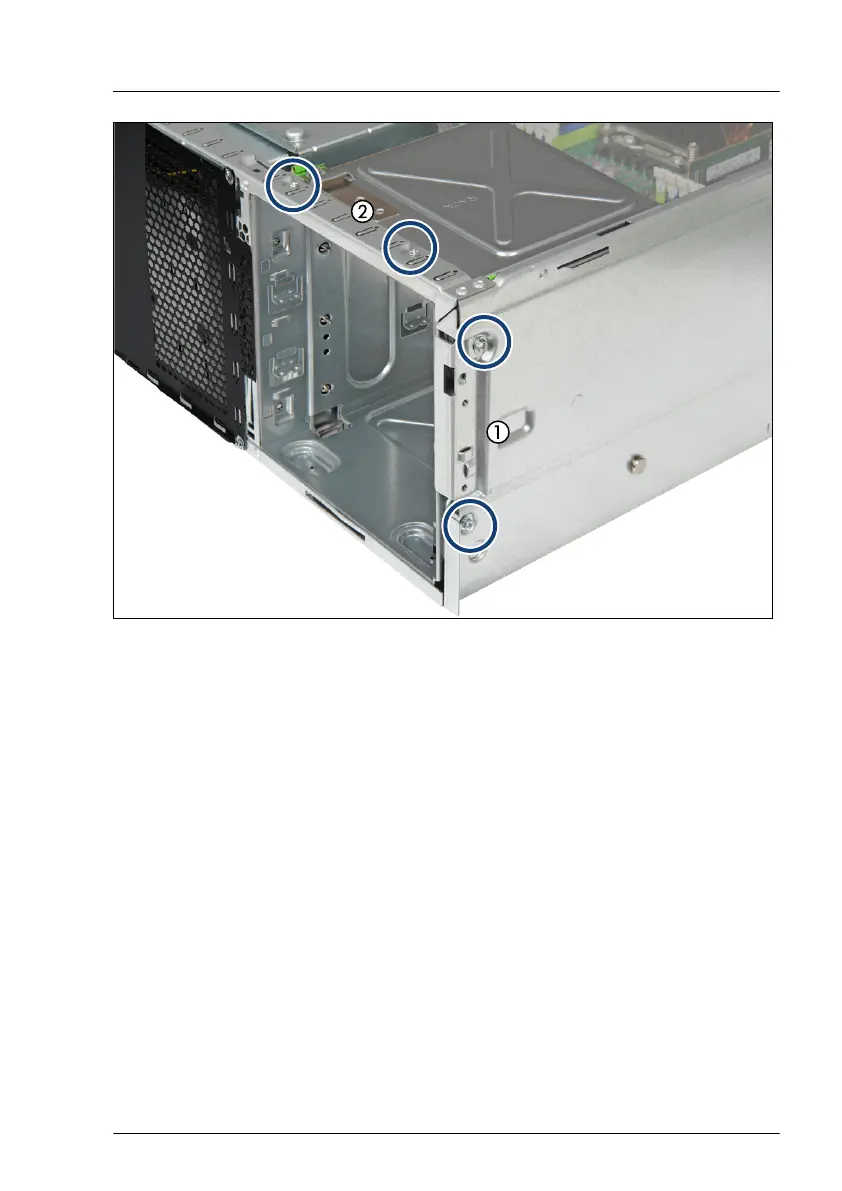

Figure 350: Securing the accessible drive cage (A)
▶
Fasten the accessible drive cage with two screws to the right chassis edge
(1).
▶
Fasten the accessible drive cage with two screws to the top edge of the
chassis (2).
▶
Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
Converting a floorstand model to a rack model
TX2550 M5 Upgrade and Maintenance Manual 539
