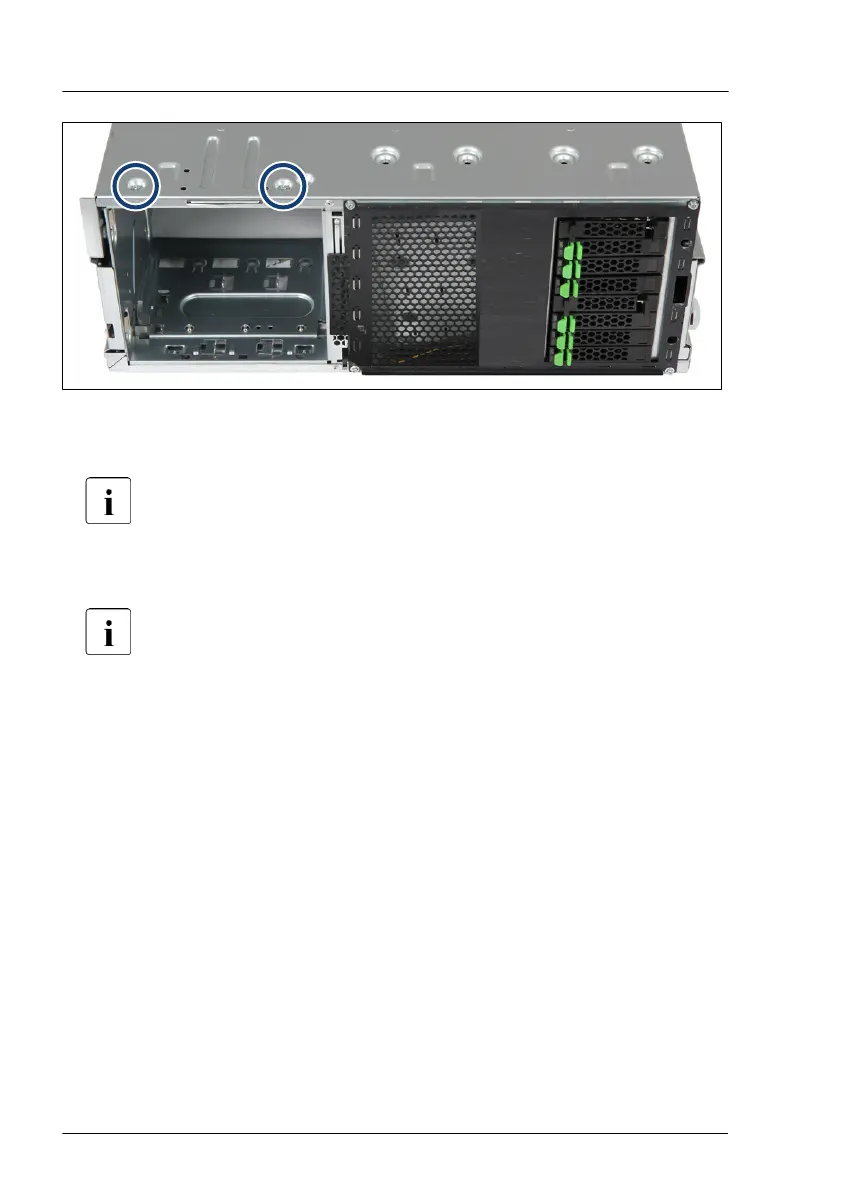

Figure 351: Securing the accessible drive cage (B)
▶
Carefully turn the server upside down.
At least two people are needed to turn over a fully equipped server.
Remove HDDs and hot-plug PSUs in order to facilitate the task.
▶
Fasten the accessible drive cage with the two screws (see circles) to the
bottom side of the server.
Note the correct screw positions: The screw hole on the right that has
been used in the floorstand configuration remains empty.
▶
Install the front panel module, see "Installing the front panel module" on
page 469.
▶
If applicable, install all accessible drives, see "Installing an accessible drive"
on page 435.
▶
If applicable, install an HDD extension box, see "HDD extension box" on
page 265.
Preparing the intrusion switch
▶
Remove the intrusion switch module, see "Removing the intrusion switch
cable" on page 546.
▶
Attach a rubber bumper (C26192-Y26-C43) to the front intrusion switch and
install the intrusion switch module again, see "Installing the intrusion switch
cable" on page 549.
Converting a floorstand model to a rack model
540 Upgrade and Maintenance Manual TX2550 M5
