6.8.1 Installation
SRLY and a plastic insulator mounts on a sheet metal carrier and is then mounted to a cabinet by screws. If an option board is
used, it plugs onto SRLYS2A and is held in place by the force of the connectors.

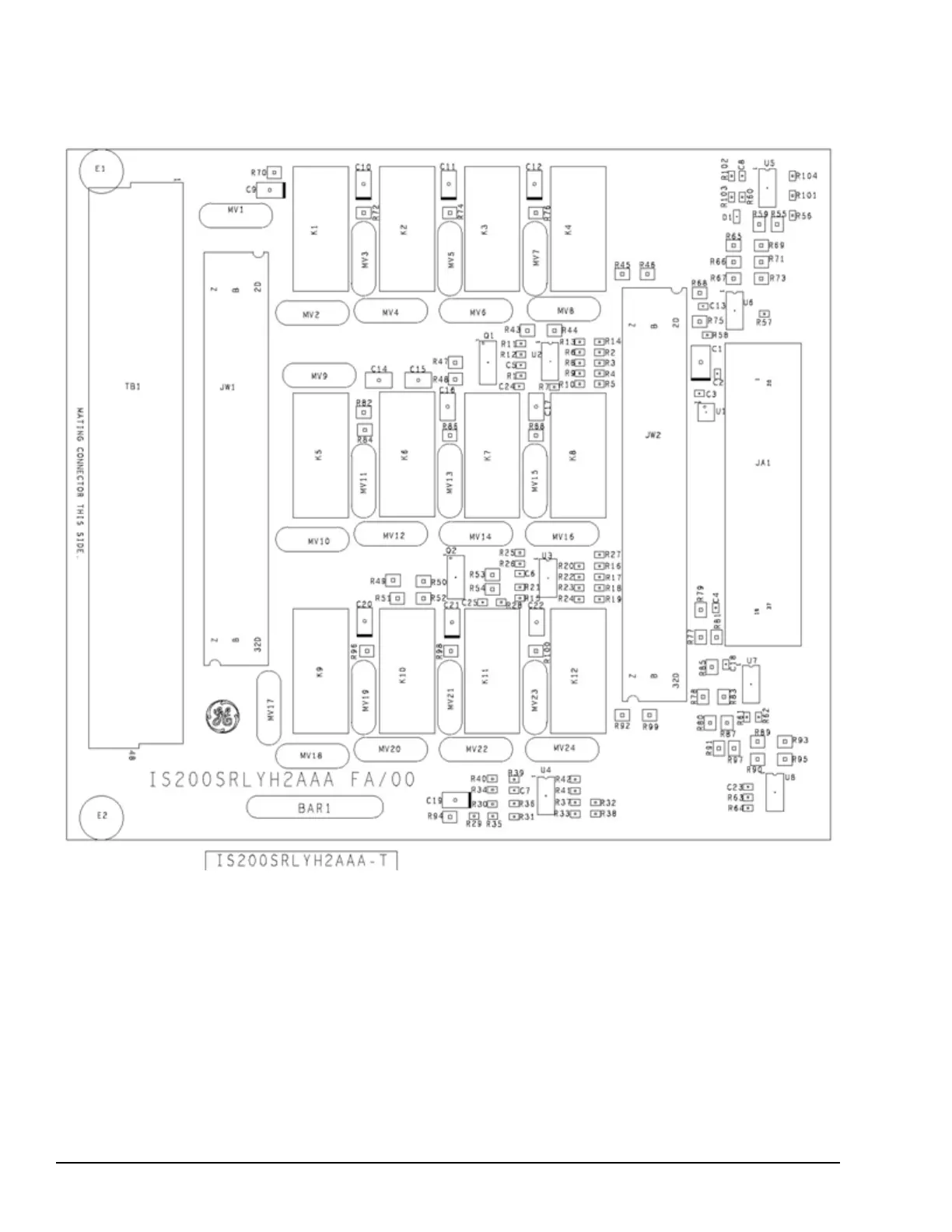

SRLY Terminal Board Layout
• NC: normally closed contact of a form C relay
• COM: common point of a form C relay contact
• NO: normally open contact of a form C relay
• SOL: return circuit path for a solenoid that is powered by the relay board
• VSENSE: the input to a voltage sensor that looks between VSENSE and COM
• RETURN: return power path for devices powered by the WROG option
