To ensure sufficient convection, adhere to the following guidelines for distance between power supply units and other
modules.
Power Supply Convection Specifications
Mounting Position
Minimum Distance Between Modules
Vertical
5 cm (2.0 in)
Lateral
5 mm (0.20 in), 15 mm (0.60 in) between active components

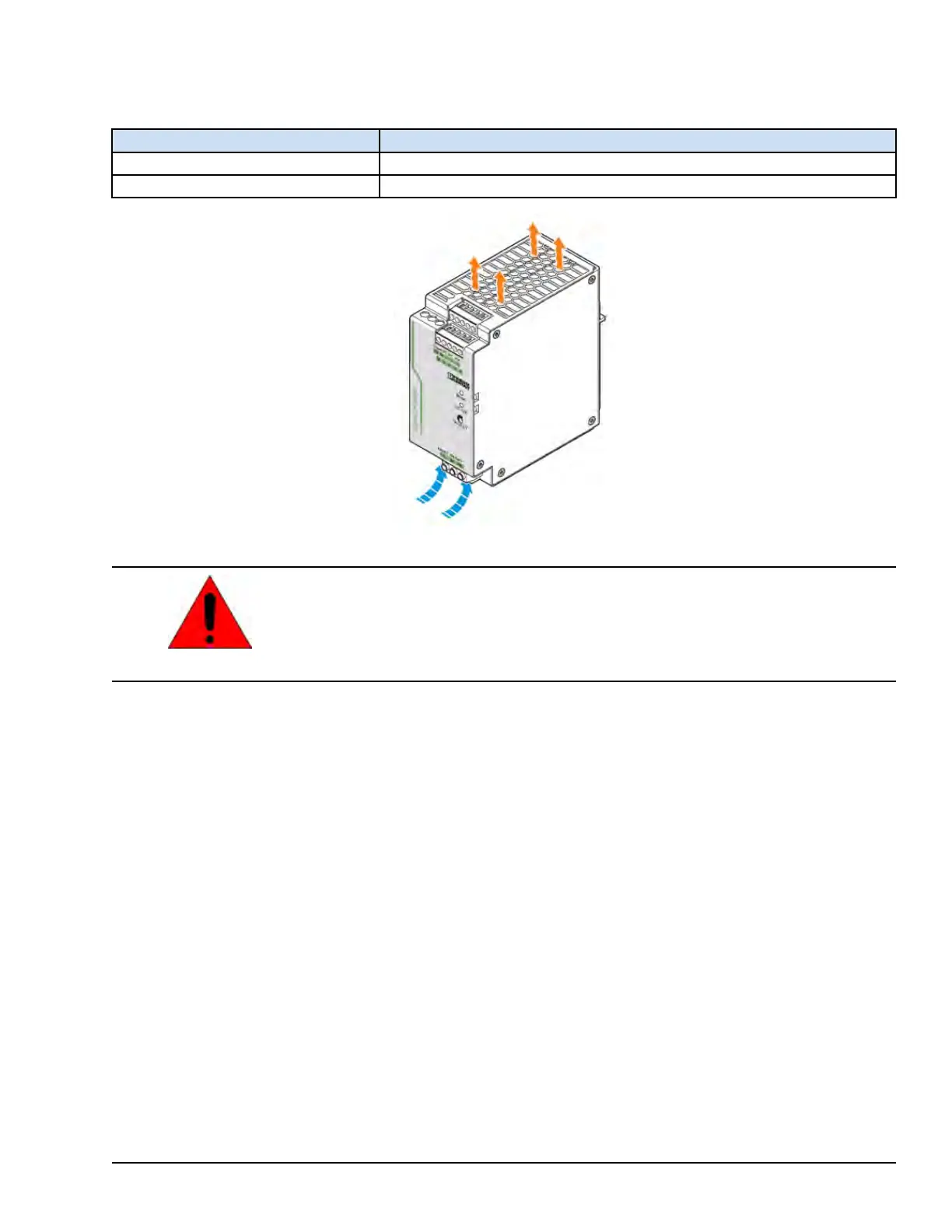

Power Supply Convection
Warning
Depending on the ambient temperature and the load of the module, the power supply
housing may become very hot.
