10.10.6 342A3648P480Wxx, 342A3648P400W40 Power Supplies
The 342A3648P480Wxx power supply provides 24, 28, or 48 V dc.
The 342A3648P400W40 power supply provides 40 V dc.
Both units are a DIN-rail mounted, single-phase switching power supply. Refer to the section Specifications for power supply
specifications.
AC input
Power Boost
DC OK switching
output active
DC OK output,
floating
Potentiometer
18 to 29.5 V dc
DC OK LED
Boost LED
Universal
DIN-rail adapter
(UTA 107/30)
(not shown)
DC output

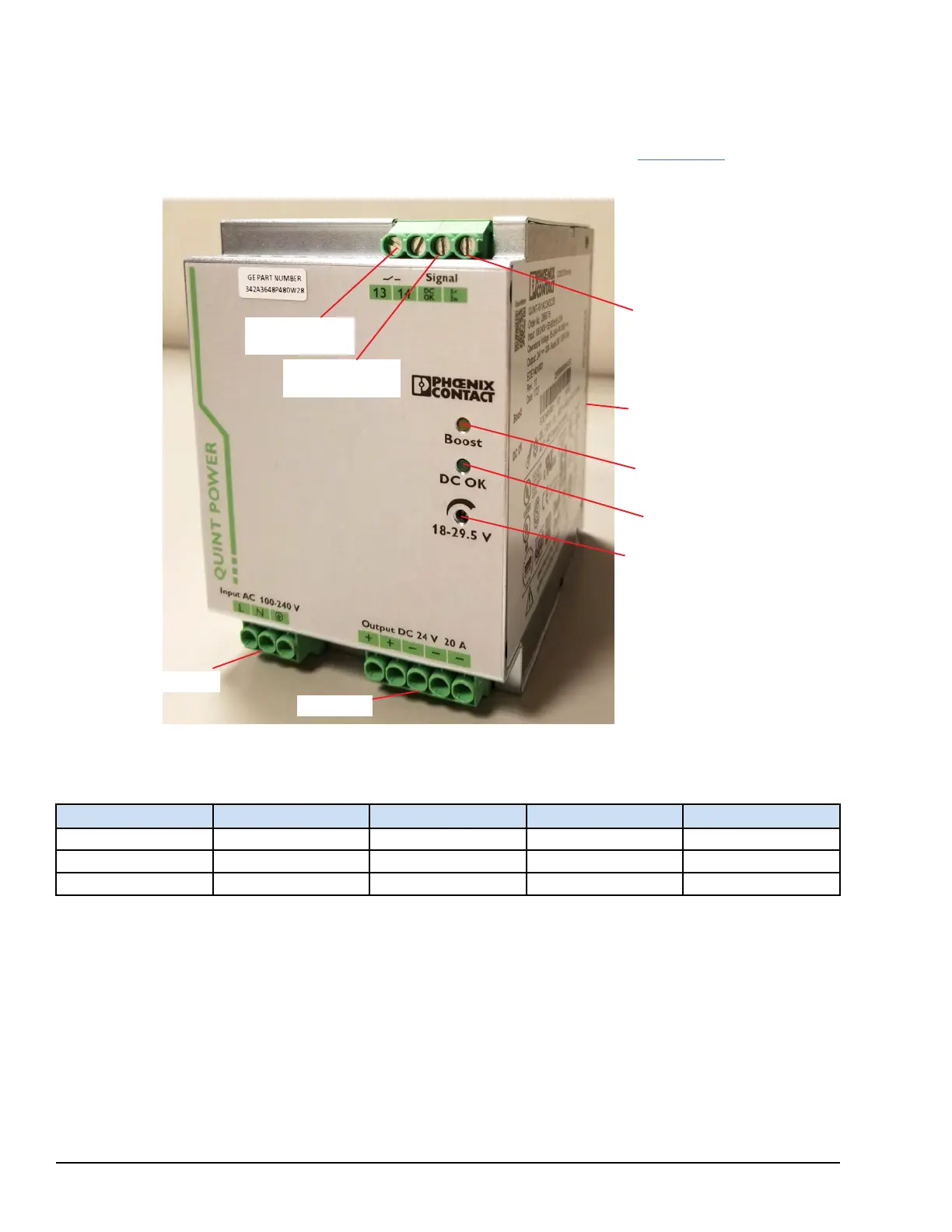

342A3648P480Wxx Power Supply
Connections
Item
Solid (mm
2
) Stranded (mm
2
) AWG Torque (Nm)
Input 0.2 – 6 0.2 – 4 18 – 10 0.5 – 0.6
Output 0.2 – 6 0.2 – 4 12 – 10 0.5 – 0.6
Signal 0.2 – 6 0.2 – 4 18 – 10 0.5 – 0.6
