10.10.2 Mounting and Installation
Most units are supplied ready for installation in a narrow mounting position.
Power Supply Mounting and Installation
The power supply unit can be snapped onto all DIN-rails in accordance with EN 60715 (units are supplied with universal
DIN-rail adapter UTA 107/30). They must be mounted horizontally, connecting terminal blocks top and bottom, with input
terminals facing upward. The following figure displays the default mounting position for Phoenix power supplies.
➢➢ To mount the power supply unit: position the module with the DIN-rail mounted guideway on the top edge of the
DIN-rail and then snap it downwards.
➢➢ To remove the unit: release the snap-on catch using a screwdriver and detach the module from the bottom edge of the
DIN-rail.

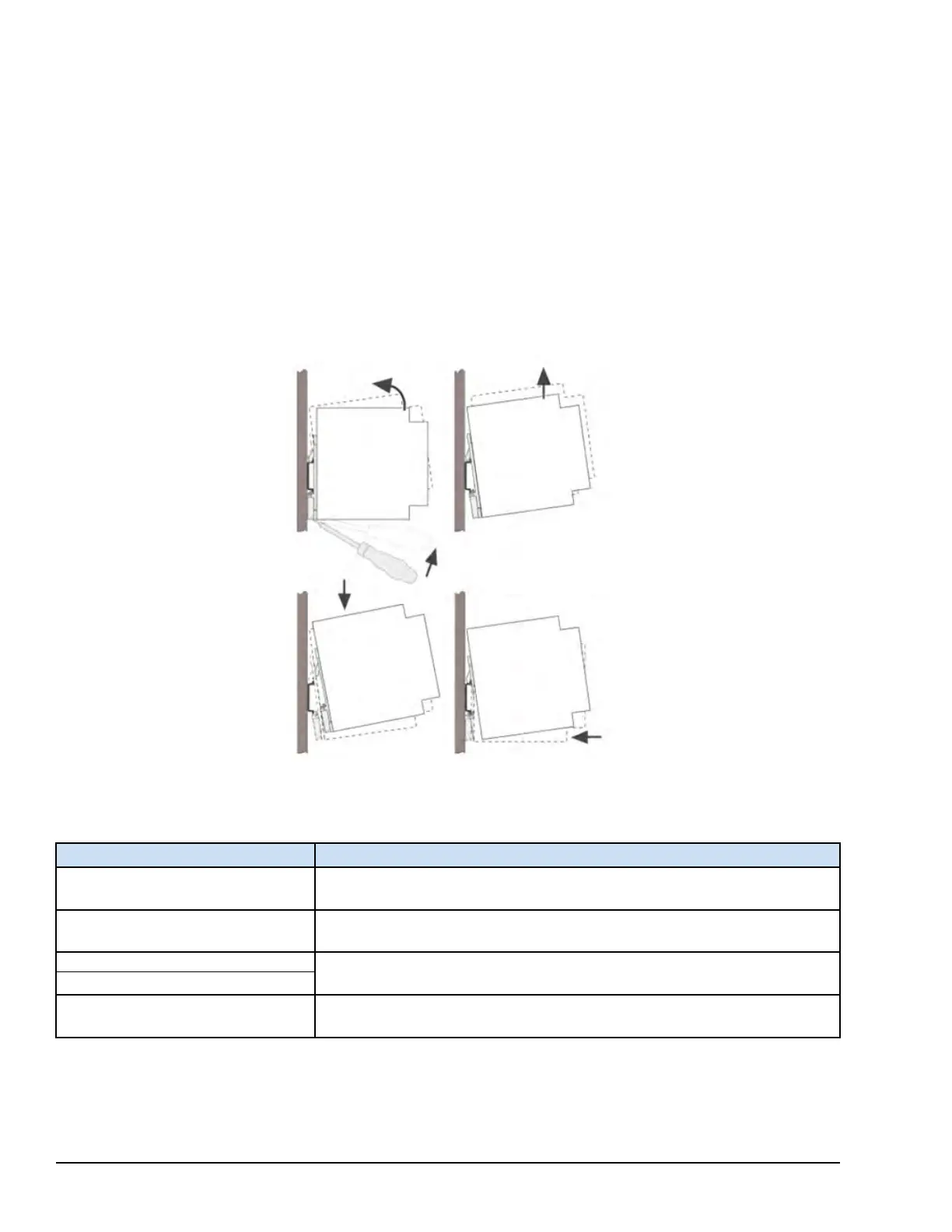

Typical Mounting Position
Power Supply Installation Depth
Power Supply
Mounting Position and Installation Depth
P120Wxx
Slim-style: 125 mm (4.92 in) (+ DIN-rail) (state at delivery)
Low-profile: 43 mm (1.70 in) (+ DIN-rail)
P240Wxx
Slim-style: 125 mm (4.92 in) (+ DIN-rail) (state at delivery)
Low-profile: 63 mm (2.48 in) (+ DIN-rail)
P480Wxx Slim-style: 125 mm (4.92 in) (+ DIN-rail) (state at delivery)
Low-profile: 90 mm (3.54 in) (+ DIN-rail)
P400Wxx
P960Wxx
Slim-style: 125 mm (4.92 in) (+ DIN-rail) (state at delivery)
Rotated 90°: 180 mm (7.08 in) (+ DIN-rail)
