GE Mark VIeS - JPDH Connections

10.7.1 Installation
Mount JPDH on a vertical surface by inserting #6 machine screws through the mounting holes at each corner of the board.
Insert Mate-N-Lok connectors as described in the following figure. The 6-pin and larger 2-pin connectors have a nominal
rating of 600 V and 13 A, while the smaller two-pin connectors have a nominal rating of 600 V and limited by fuse rating to
0.8 A max.

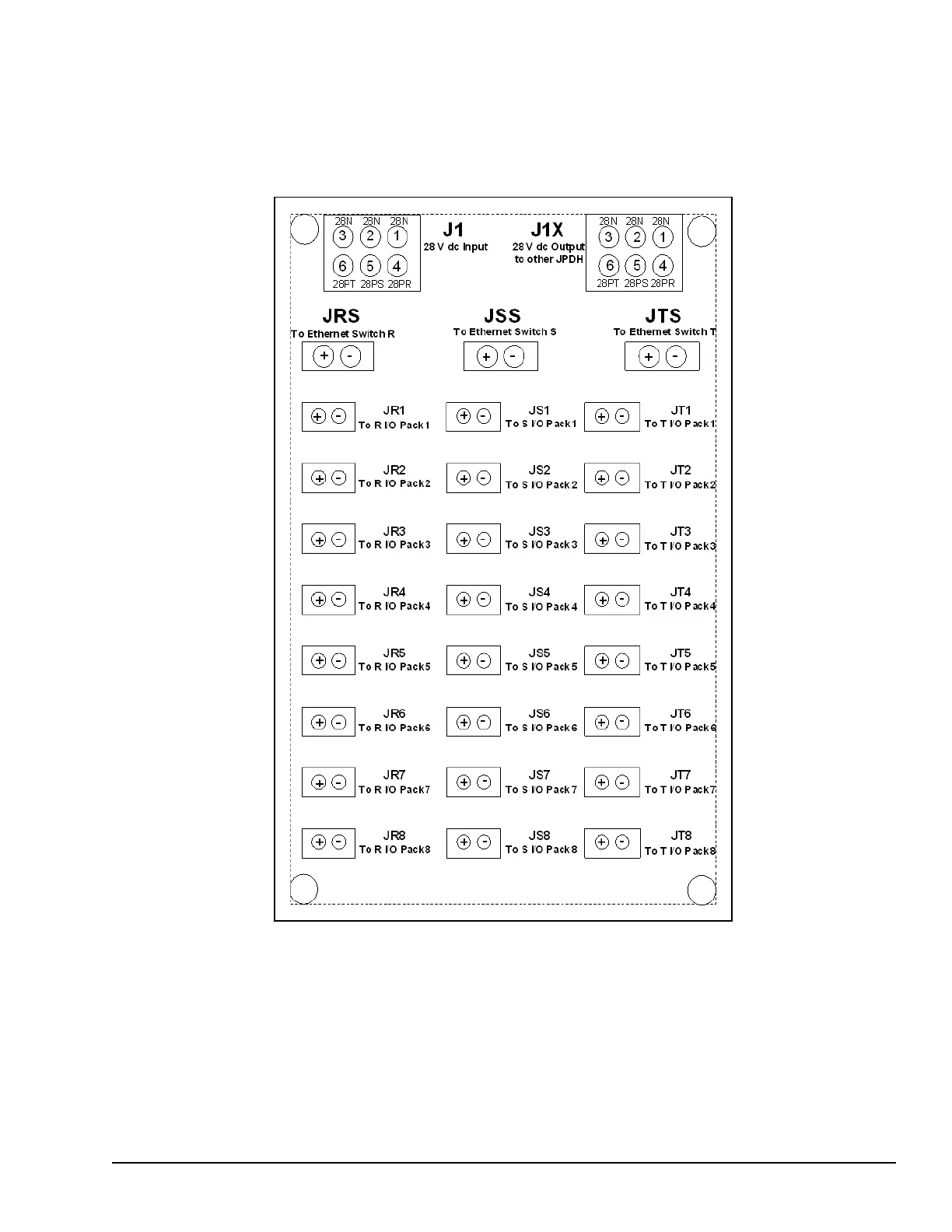

JPDH Connections
