GE Mark VIeS - 342 A3648 PD80 A48 C FET-OR Modules

10.10.10 342A3648PD80A48C FET-OR Modules
The 342A3648PD80A48C FET-OR module is a redundancy module that can be used to FET-OR and decouple two power
supplies of the same type to increase power or provide redundancy. The FET-OR module provides 100% decoupling of power
supplies connected in parallel. The module is supplied ready for DIN-rail mounting. Refer to the section Specifications for
power supply specifications.

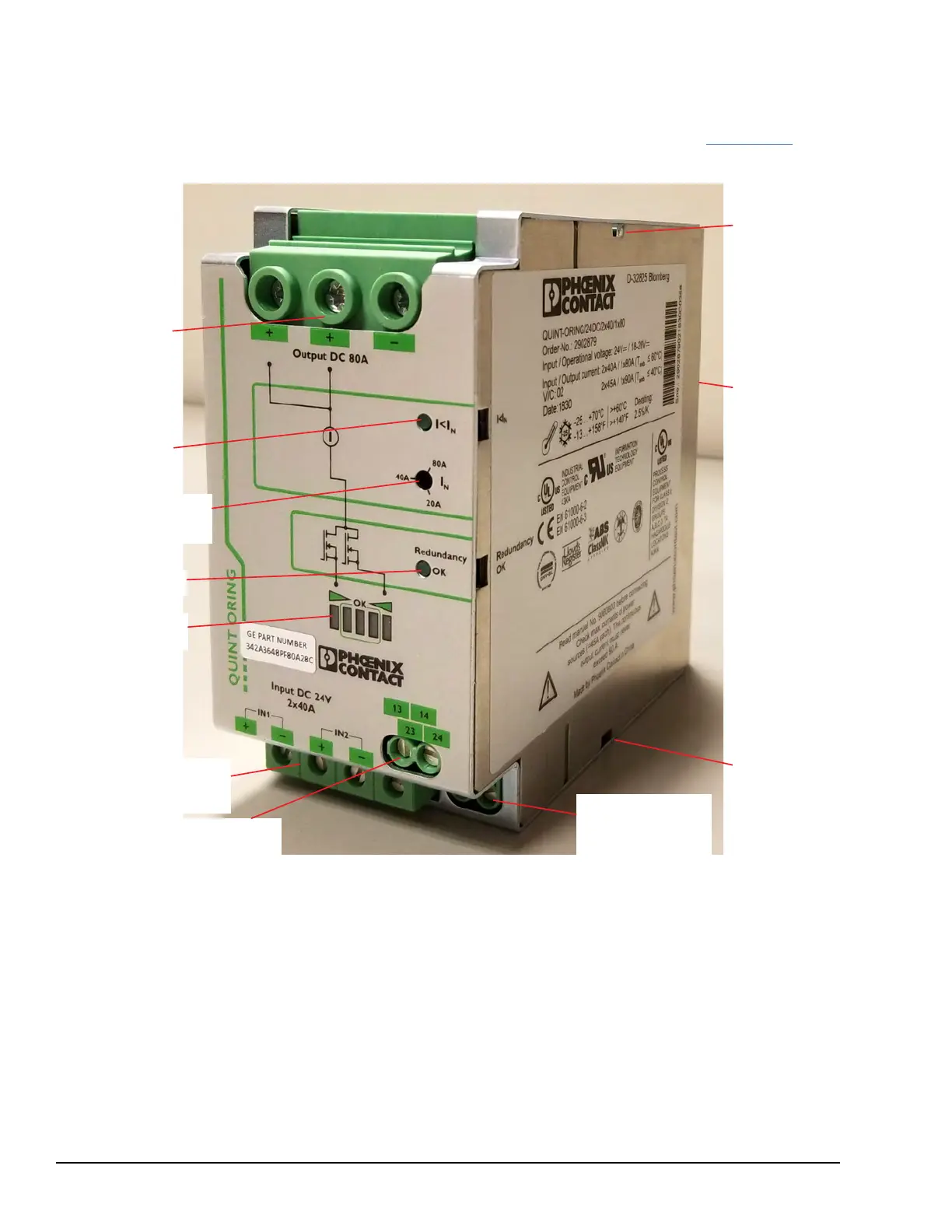

IN1/IN2 DC input
24 V input voltage ,
I
N
= 2 x 40 A
DC output
(
~ 0.2 V < DC input
)
Bar graph displaying
current balance I
1
/I
2
Floating relay contact
23/24 ACB OK
(
max 30 V, 100 mA,
short-circuit proof
)
Floating relay contact 13/14
Redundancy OK (
max 30 V,
100 mA, short- circuit proof
)
Rotary selector switch to
select nominal current of
power supply units
I < I
N
LED
Redundancy OK LED
Universal
Snap-on foot
for DIN-rails
(
not shown
)
Strain relief for
cable connection
Strain relief for
cable connection
342A3648PD80A48C FET-OR Module
