10.10.7 342A3648P960Wxx Power Supplies
The 342A3648P960Wxx power supply provides 24, 28, or 48 V dc. It is a DIN-rail mounted, single-phase, primary switching
power supply used for universal use. Refer to the section Specifications for power supply specifications.

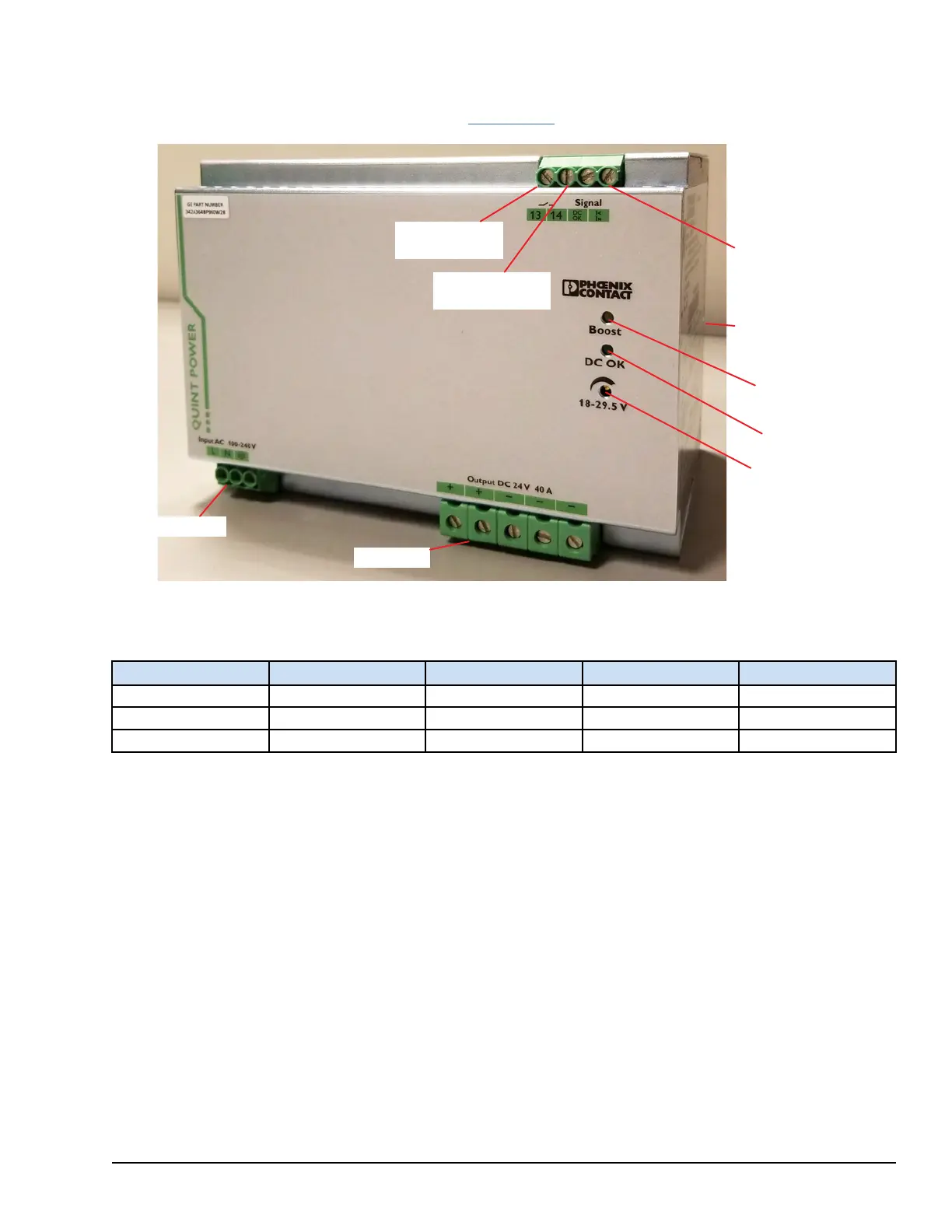

AC input
Power Boost
DC OK switching
output active
DC OK output,
floating
Potentiometer
18 to 29.5 V dc
DC OK LED
Boost LED
Universal
DIN-rail adapter
(UTA 107/30)
(not shown)
DC output
342A3648P960Wxx Power Supply
Connections
Item
Solid (mm
2
) Stranded (mm
2
) AWG Torque (Nm)
Input 0.2 – 6 0.2 – 4 18 – 10 0.5 – 0.6
Output 0.5 – 16 0.5 – 16 8 – 6 1.2 – 1.5
Signal 0.2 – 6 0.2 – 4 18 – 10 0.5 – 0.6
PDM Power Distribution Modules GEH-6855_Vol_II System Guide 429
Public Information
