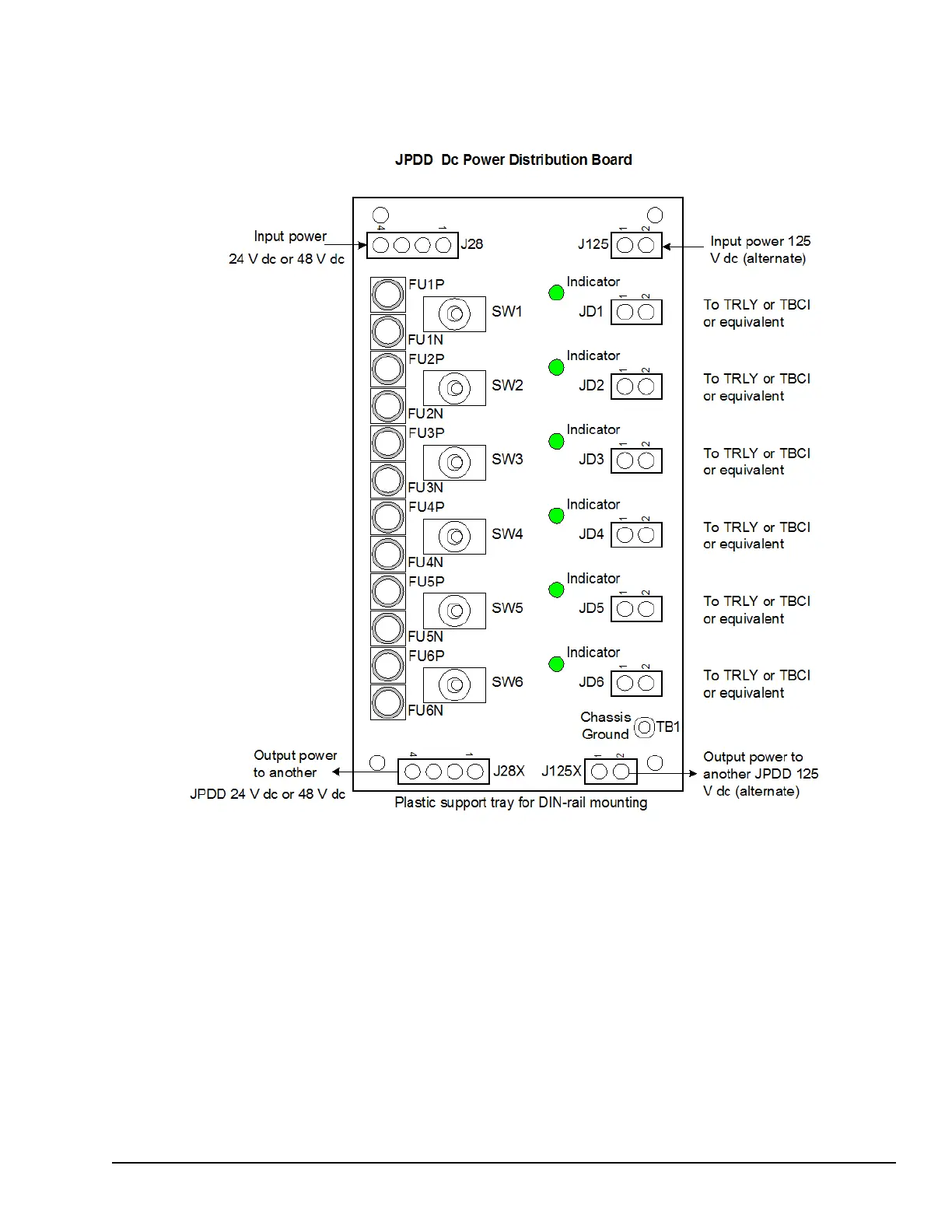

10.4.1 Installation
JPDD is held in a plastic holder, which mounts on a vertical DIN-rail. When installing the JPDD, it is important to provide a
ground lead from TB1 to the system ground. This creates a ground path for the metal switch bodies.
JPDD Cabling
Power input can be 24 V dc, 48 V dc, or 125 V dc, but only one voltage level at any given time. Do not mix voltages. For
cable destinations, refer to the circuit diagram. TB1 should be connected to system ground.
