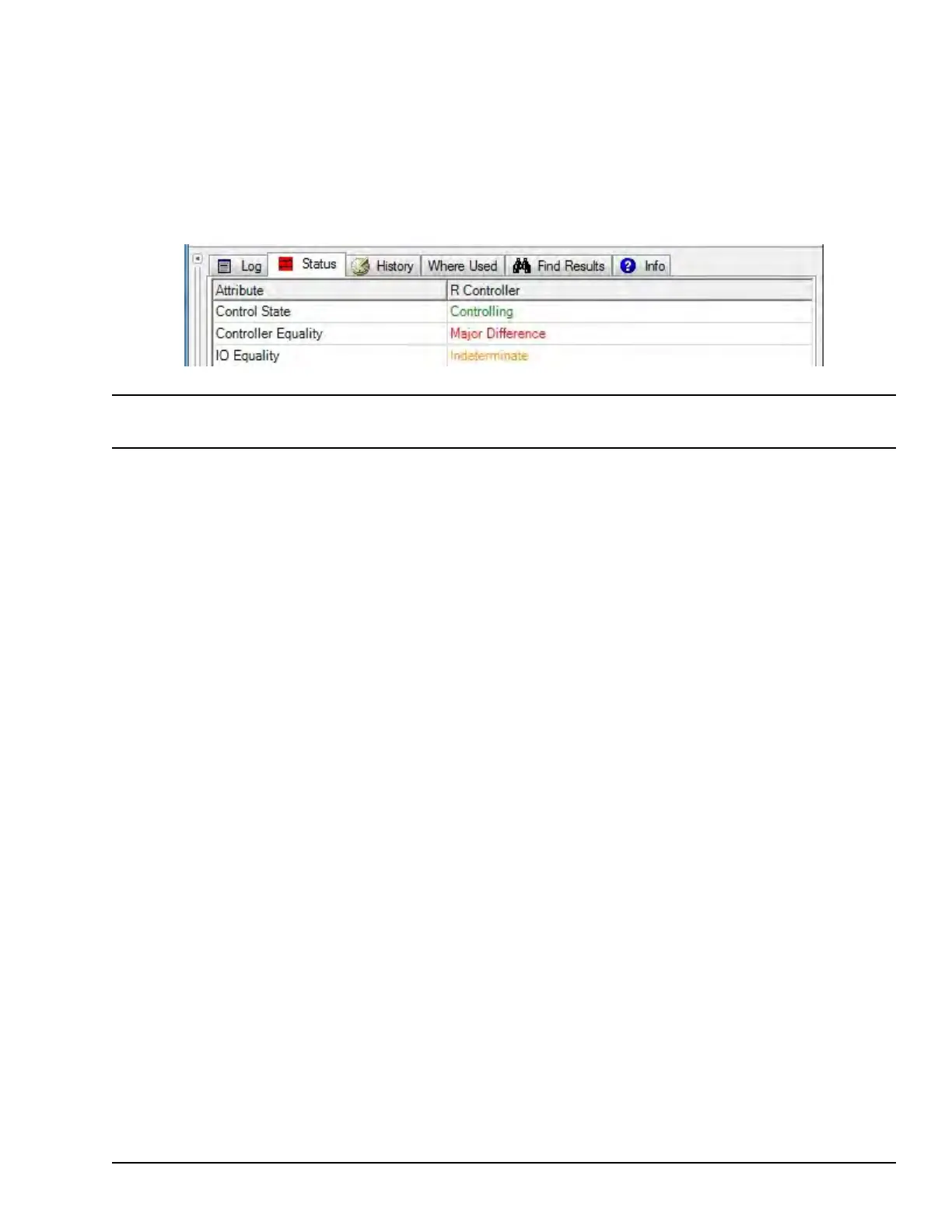

The color of the Status tab indicates overall health and equality status of the controller, including its associated I/O hardware.
A major difference in controller equality means that the configuration in the ToolboxST application is different from the
controller configuration.
• Green indicates that the ToolboxST configuration and the controller configuration are equal.
• Orange indicates the presence of inequalities or diagnostic warnings.
• Red indicates that the configuration in the ToolboxST system, which includes base load, firmware, application code,
and I/O module configuration, is significantly different from the component configuration (a Download will correct
this).
Note Refer to GEH-6855_Vol_I, the chapter Troubleshooting for further assistance. For example, if a particular download
fails, this may be fixed by selecting the pack individually from the download wizard and trying again.
Controllers GEH-6855_Vol_II System Guide 39
Public Information
