<Screen display (X axis measurement value)>

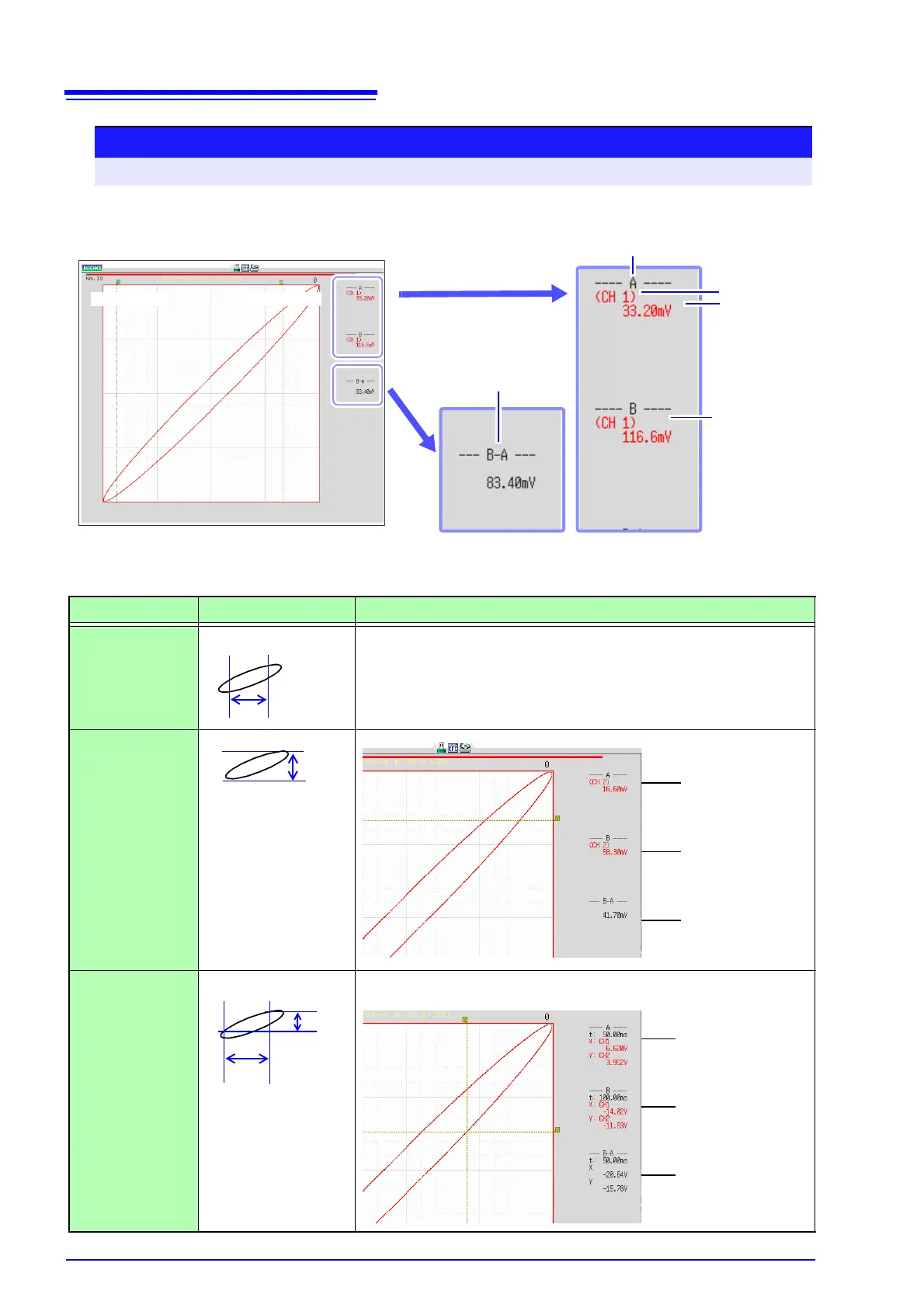

Reading Measurement Values on Waveform Screen (for X-Y1, 4 screens)
To open the screen: Press the DISP key → Waveform screen
A Cursor B Cursor
X-Y synthesis of channel 1 and channel 2 waveform
Channel
Measure-
ment Value
Cursor A Value
Cursor B
Value
Difference between
measured values at
A/B cursors
<Cursor Value>
Cursor Type
Cursor Value
Cursor Value Display Example (with two cursors)
X
(X axis measure-
ment value)
See "Screen display" above
Y
(Y axis measure-
ment value)
Trace
(Time and X axis,
Y axis measure-
ment value)
AB
B-A
A
B
B-A
Cursor A
measurement
value
Cursor B
measurement
value
Difference
between mea-
sured values at
A/B cursors
(Y axis channels)
A
B
B-A
B-A
(Y axis)
(X axis)
Cursor A time and
measurement value
Cursor B time and
measurement value
Time and measure-
ment value differen-
tial between cursor
A and B
(X axis and Y axis channels)
