7.4 Performing Waveform X-Y Synthesis
109
7
Chapter 7 Waveform Screen Monitoring and Analysis
Procedure

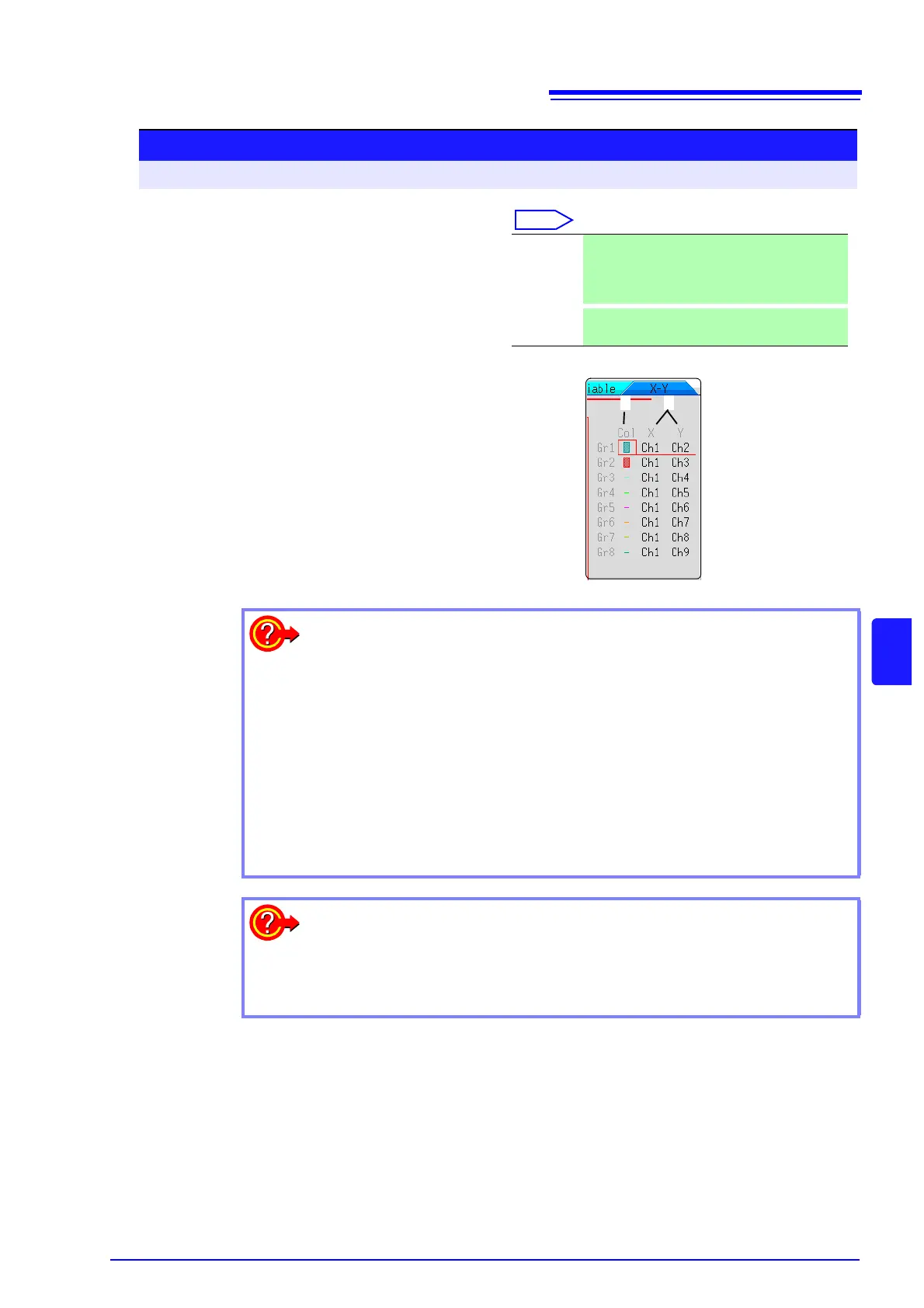

To open the screen: Press the DISP key → Waveform screen → Press the CH.SET key → X-Y settings window
4
Set the waveform color in the graph display.
Move the cursor to the for which you want to set the
color, and make the selection.
You can also select the same color as for another channel.
5
Select the channels for X-Y synthesis.
Move the cursor to the items for the X (time axis) and Y
(voltage axis) and assign a channel.
The same channel can also be assigned multiple times.
Off Waveform display is off. When a save channel
is specified as display channel, Auto Save will
not be carried out.
"Select the channel to save." (
p.71)
On
Waveform is displayed. Select the display color
with the F keys [↑], [↓].
Synthesis for A/B section of a waveform
Perform the following steps.
1. Press the STATUS key to bring up the Status screen, and select the [Sta-
tus] sheet.
2. Select 1, 2, 4, or 8 screens as [Format].
3. Press the DISP key to display the waveform.
4. Use the A/B cursors to specify the range for synthesis. See the following
pages. ( p.102), ( p.105)
5. Press the STATUS key to bring up the Status screen, and select the [Sta-
tus] sheet.
6. Select [X-Y Single] or [X-Y Quad] for [Format].
To move pen on synthesized waveform
Press the WAVE key so that the key is lit. The pen can now be moved over the
entire waveform with the Jog & Shuttle knobs. The time at the pen position is
shown at the top right of the screen.
To Next Page
