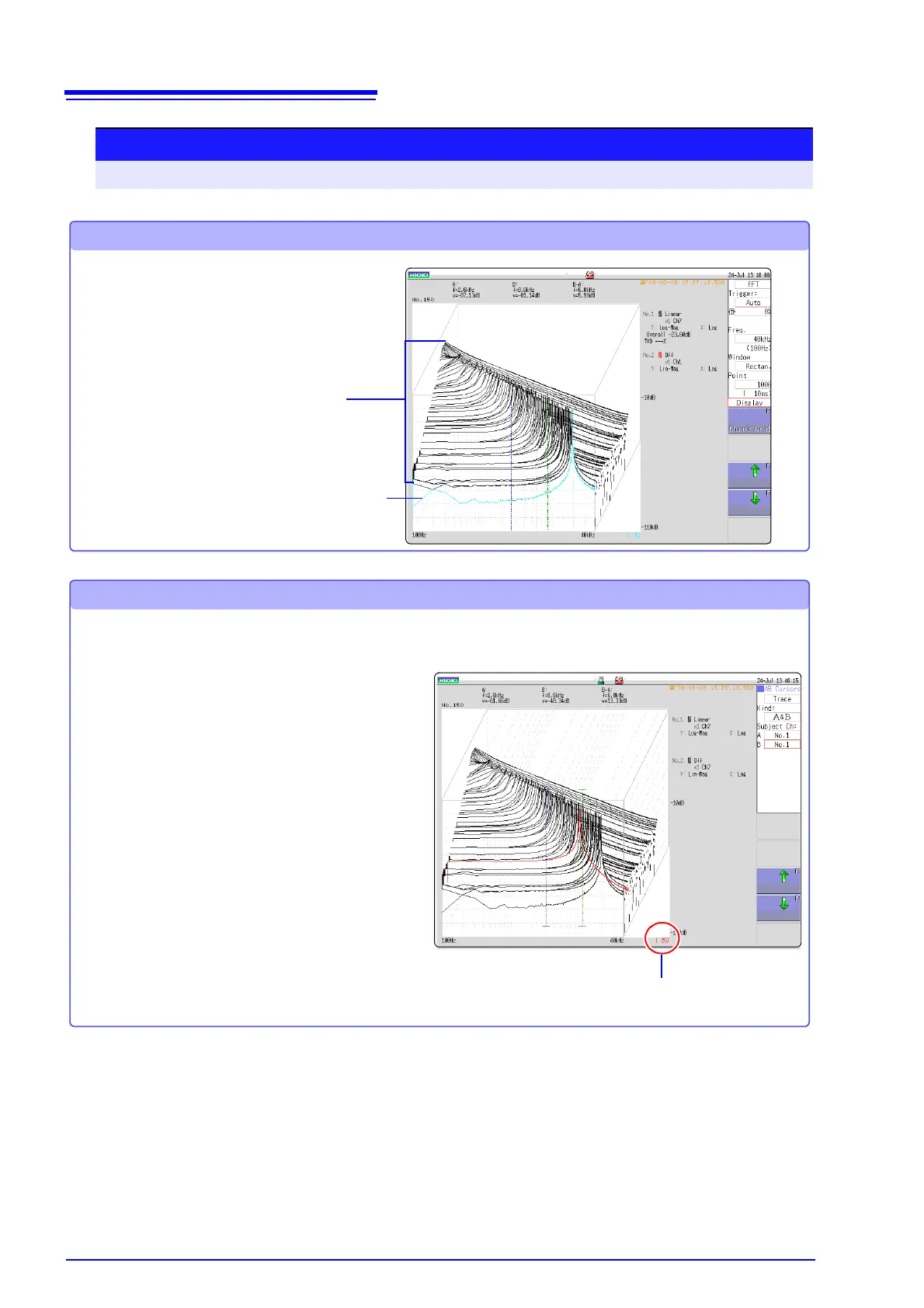

Stopping waveform movement during measurement
If the AUTO key is pressed during mea-
surement, waveform movements can be
stopped temporarily.
The latest calculation results are displayed
in the foreground.
To restart, press the AUTO key again.
Past waveforms
The latest waveform dis-
played during pausing of
measurement
Reading measurement values of past waveforms by cursor
After measurement is finished, read the values of each waveform by cursor.
The older the waveform,
the larger the number.
1 Press the WAVE key on the panel of the
unit.
2 Select a waveform.
Rotate the jog and shuttle of the unit panel
and select the waveform.
(The waveform number is displayed in the
lower right of the screen.)
3 Move the cursor.
Press the AB CSR key on the unit panel,
rotate the jog and shuttle to read the cursor
value.
