5.2 Saving Data
76
6
Making advanced settings
Available settings will differ, depending on the save type. Refer
to the table below.
7
(For memory function)
When using the memory division function
Select the blocks to be saved
Move the cursor to the [Save Block].
Select
This completes the data save settings.
When the SAVE key is pressed, the saving operation will use
these settings.

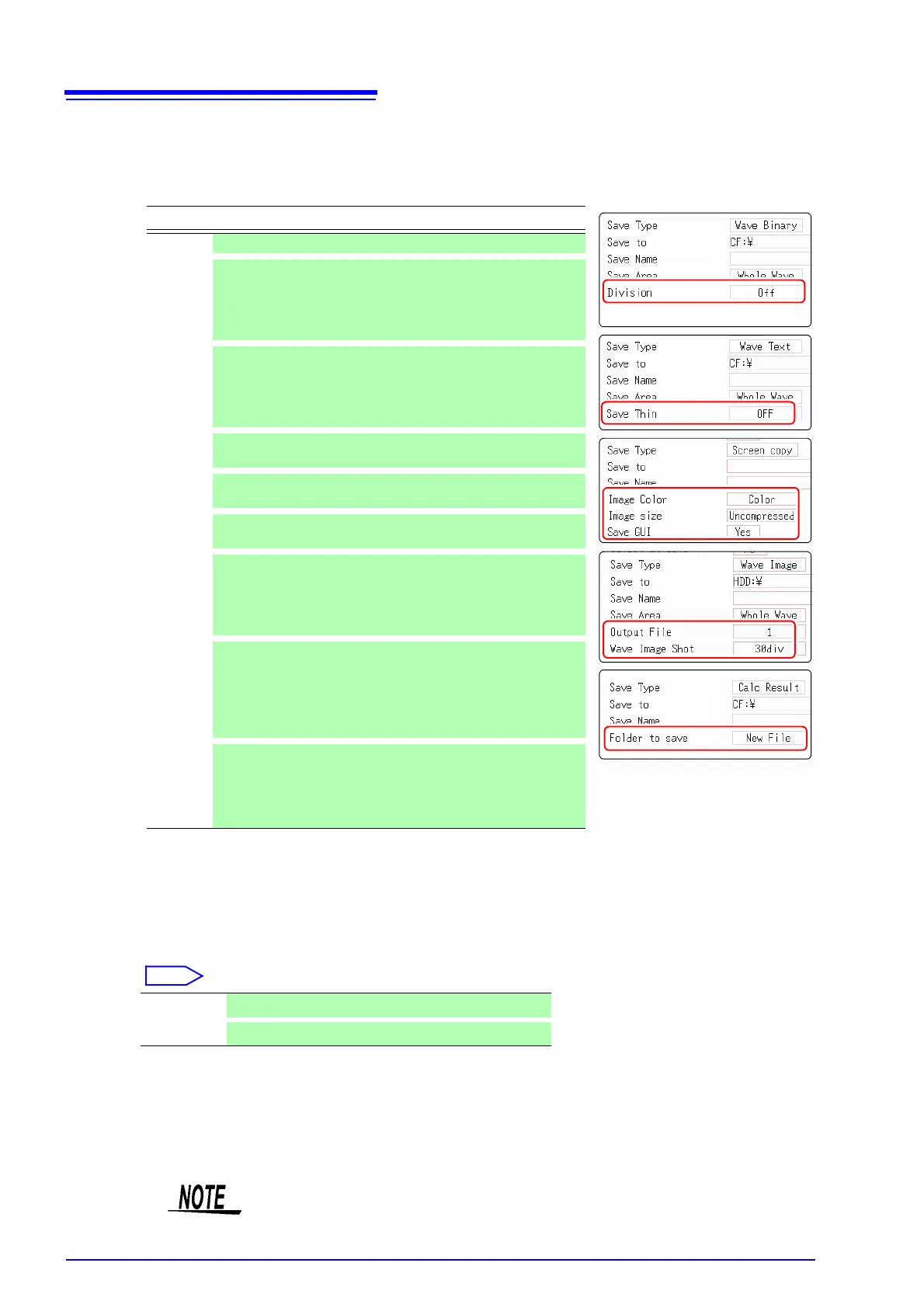

Save Type Settings Description
Setting
- -
Wave
Binary
Division (Off, 16 M, 32 M)
Select this to divide a large file into several files for
saving.
A folder with the specified name is created and data
are saved as multiple files in that folder.
Wave Text
Save Thin (Off, 1/2 to 1/1000)
Select this to use thinning (sub-sampling) when sav-
ing data.
Only a specified subset (one out of several data) is re-
tained.
Screen
Copy
(Hard
copy of
the
display)
Image Color (Color, Gray, Mono, Mono (Rev))
Specifies the color for the created image file.
size
(UnCompressed, Compressed)
Determines whether the image file is compressed.
Save GUI (Yes, No)
Determines whether the GUI section is also saved.
Wave
(Print
Image)
Output File (All, 1 to 250)
Specifies the number of files to save.
To specify a range, open the [Printer] sheet from the
System screen and set the printing area to [A-B Wave].
(Memory/Recorder Function only)
Wave Image
Shot
(1 to 60 div)
Specifies the data volume per file.
If the number of measurement data is lower than the
number of selected divisions, only the number of
measurement data will be saved. (Memory/Recorder
Function only)
Calc
Result
Folder to
save
(New File, Existing File)
Determines whether data are saved under a new file
name every time (with automatically incremented
number if the same file name exists), or appended to
the same file.
All Blks Blocks with waveforms are all saved.
Start-End
All used blocks from the start block are saved.
If [Image size] is used when saving a display image file, the image may not be
viewable with some image viewer applications.
