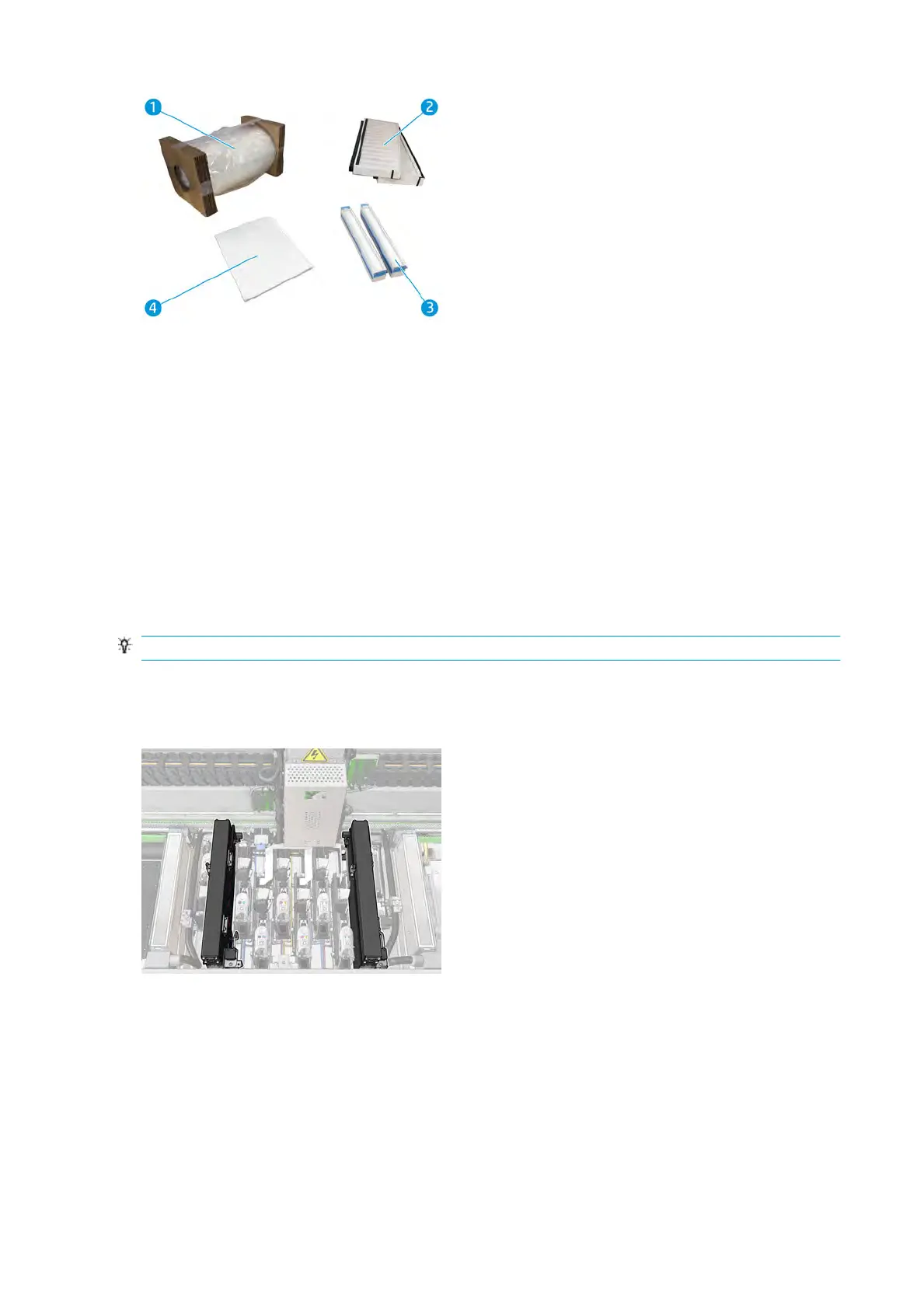

1. Printhead cleaning roll
2. Aerosol lters
3. Drying lters
4. Left spittoon
The Internal Print Server provides instructions for all replacements. Go to the Internal Print Server and select
Printer > Replace cleaner roll. A wizard appears summarizing all the operations to be done:
●
Replace the aerosol lters.
●
R
eplace the drying lters.
●
Replace the left spittoon.
●
Replace the printhead cleaning roll.
TIP: Y
ou are recommended to wear gloves.
Click Next at the bottom of the wizard window to start the replacement of the aerosol lters.
Replace the aerosol lters
1. Ensur
e that the printer is not printing.
2. Ensure that all windows, covers, and doors are closed and remain in their original position.
124 Chapter 5 Handle the ink system ENWW
