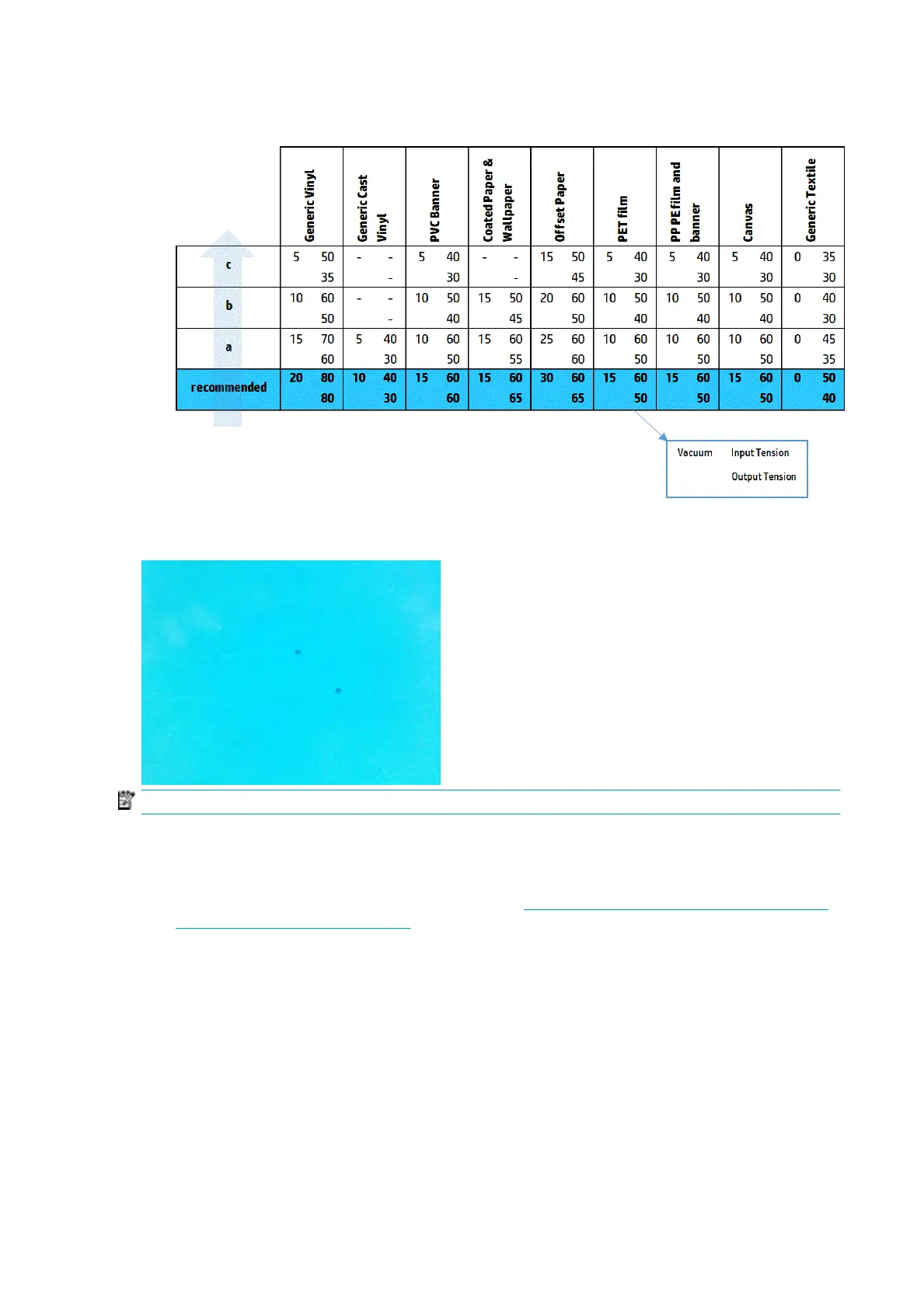

5. Reduce tensions and modify vacuum settings, following the table below step by step (a to c), until you
nd settings that work.
There are drops of ink on the substrate
NOTE: In the above example, the distance between the drops is about 1 cm (0.4 in).
1. If you are using the substrate edge holders, clean them.
2. Clean the sides of the printheads and the sides of the printhead slots.
3. Clean the electrical connections to the printheads. See The Internal Print Server recommends replacing
or reseating a printhead on page 334.
304 Chapter 9 Troubleshoot substrate issues ENWW
