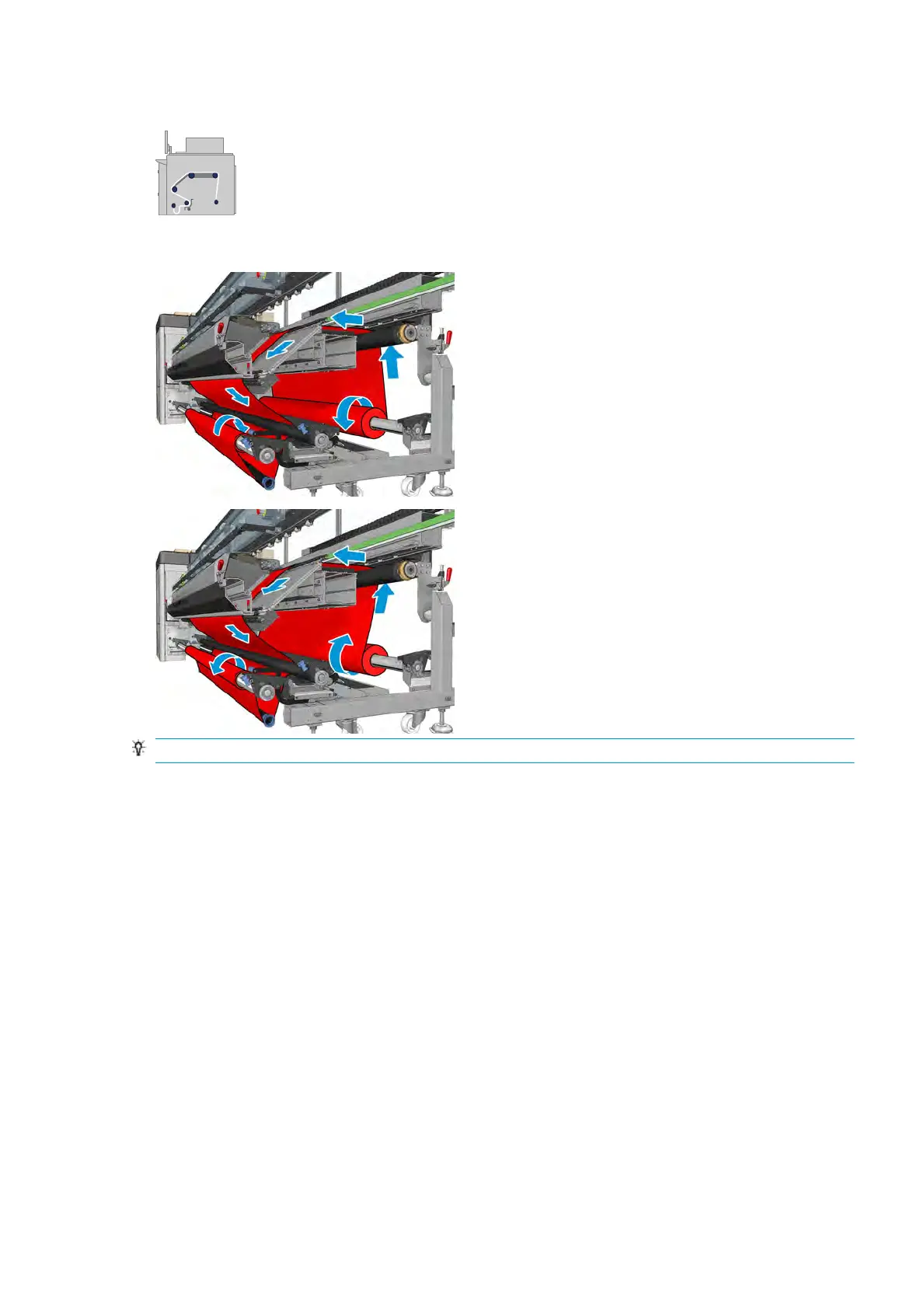

Load a roll (roll-to-collector conguration)
This conguration is similar to the roll-to-free-fall conguration, but with the addition of a collector roller and
loop shaper.
TIP: Do not try to load or unload the collector while printing.
Before starting to load the substrate, select a loop shaper of the correct length to match the substrate width.
The following tubes are supplied so that you can make up loop shapers of many dierent lengths.
●
One 152-mm (6-in) tube
●
Two 203-mm (8-in) tubes
●
One 305-mm (12-in) tube
●
One 610-mm (24-in) tube
●
Two 1067-mm (42-in) tubes
●
Two end anges, to be placed at each end to avoid lateral displacement of the loop shaper during
printing
For example, you can make up the following loop shapers.
●
914 mm (36 in): 610-mm (24-in) and 305-mm (12-in) tubes
●
1016 mm (40 in): 610-mm (24-in) and two 203-mm (8-in) tubes
●
1270 mm (50 in): 1067-mm (42-in) and 203-mm (8-in) tubes
●
1372 mm (54 in): 1067-mm (42-in) and 305-mm (12-in) tubes
ENWW Load a roll into the printer 71
