vertical c0 line is displaced to the right, you need to move it to the left. Therefore, a value lower than
your actual selection (L=12) is needed.
●
Substrate axis misplacement: The c0 line is displaced to the top. Since the ‘20’ arrow points to the
bottom, if you apply values bigger than your actual value it will be moved to the bottom. This is just
what you want, so a value higher than the actual selection (O=7) is needed.

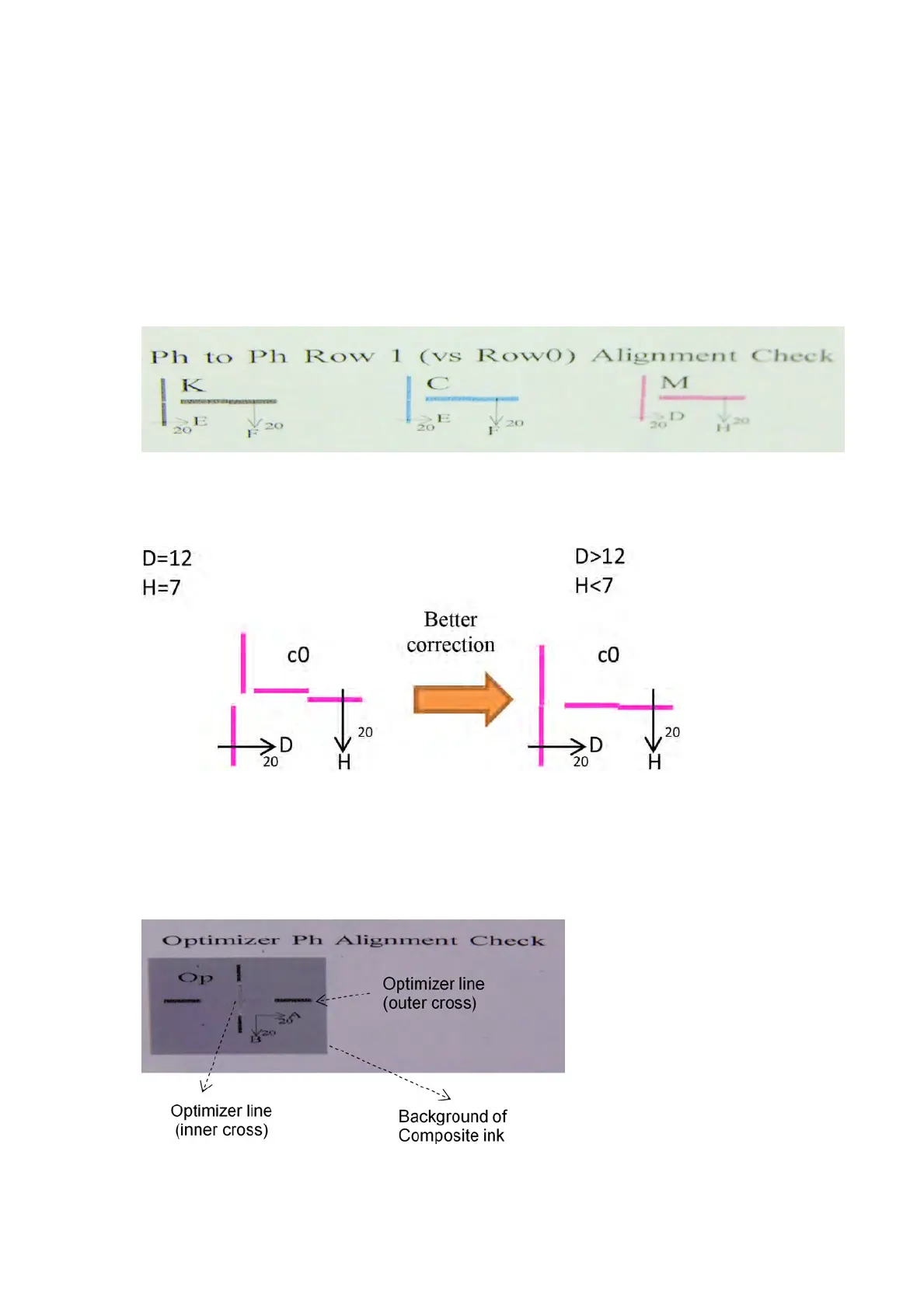

Zone 2: Printhead to printhead Row1 (versus Row0) alignment check
This area shows the printhead-to-printhead alignment for the second row of color printheads. Each color is
referenced to the same color in Row0. The alignment is correct if no discontinuity or step is detected in any
direction.
As in the description of the previous area, in case of misalignment the arrows indicate the pattern of the
manual alignmen
t that will correct the misalignment. Also, the ‘20’ label indicates the direction in which the
line will be moved if a ‘20’ value is applied. For example, imagine that in the manual alignment the chosen
value for D is 12, and the chosen value for H is 7. Imagine also a misplacement in the M:
As in the previous zone, increasing D and decreasing H will help to improve the results.
Z
one 3: Optimizer printhead alignment check
This area shows the optimizer-to-color printhead alignment. The optimizer is referenced to the black ink. It
works exactly the same as Zone 1. However, there is a background color that highlights the presence of the
optimizer.
142 Chapter 6 Printer calibration ENWW
