8. Printhead cleaner roll door
9. Curing module latches, one on each side
10. Tension roller (for roll-to-free-fall conîžguration)
11. Front door
12. Curing module handles
13. Substrate output spindle

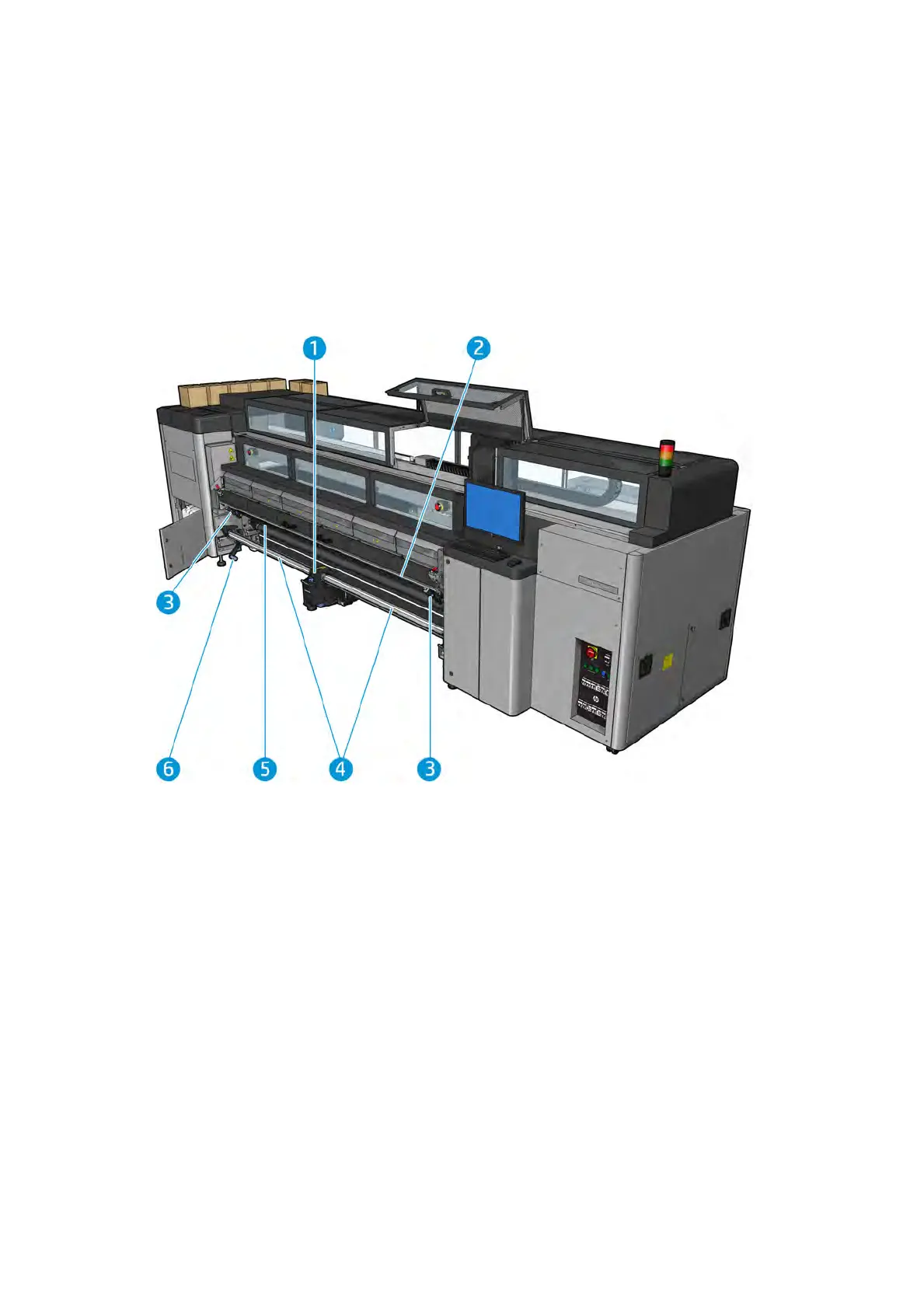

Front view HP Latex 3100 / 3500 Printer
1. HP Latex 3500 only: Dual roll split spindle center support
2. Universal Mounting Beam
3. (Also optional for 3100) Slitters
4. HP Latex 3500 only: Split spindles
5. LED prooîžng lights
6. HP Latex 3500 only: Roll ejector lever
ENWW Main components 11
