HP Latex 3000 Series

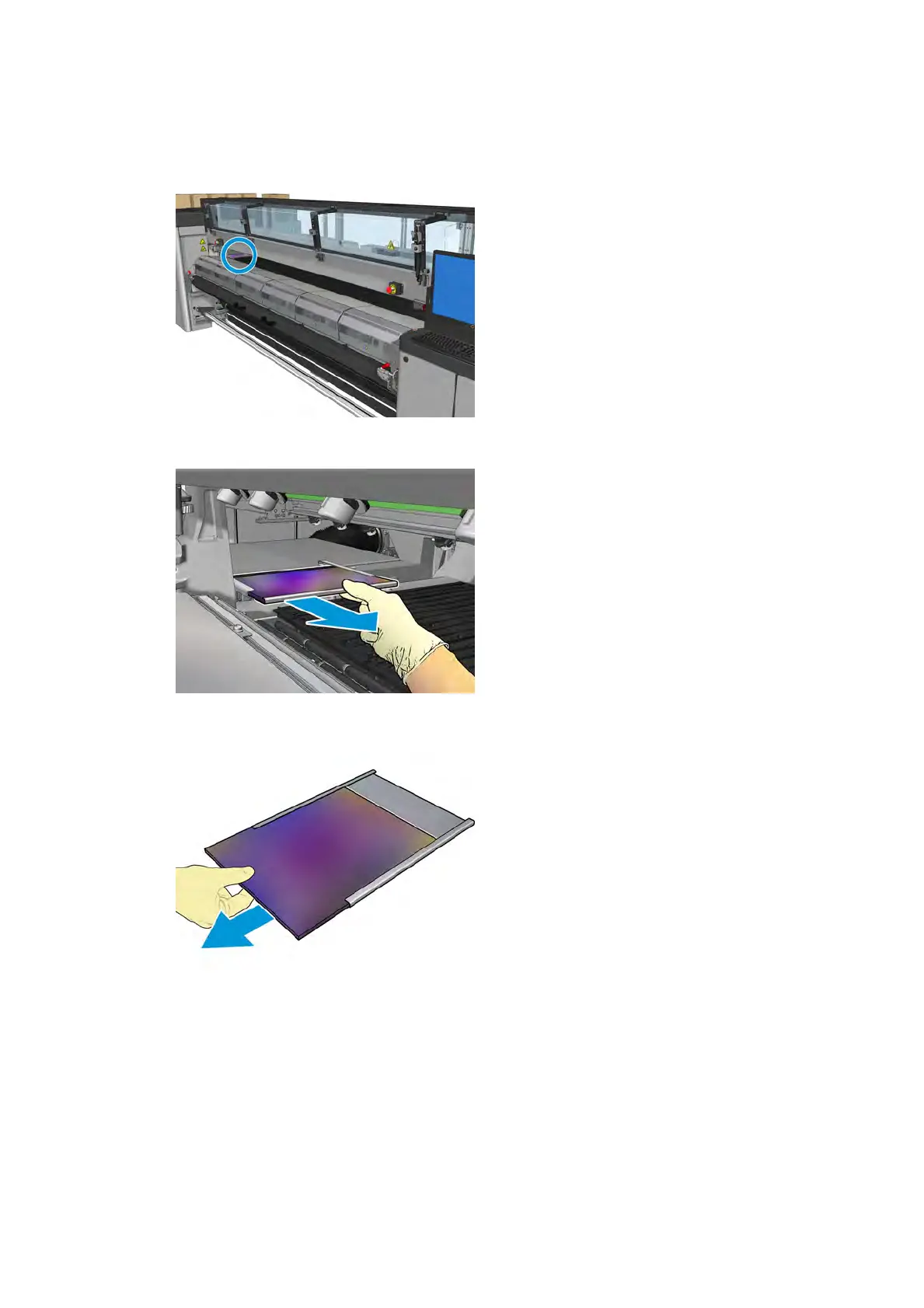

Replace the left spittoon
1. Open the front door.
2. Locate the left spittoon at the left side of the print area.
3. Slide out the left spittoon foam with its frame.
4. Remove the foam from the frame.
128 Chapter 5 Handle the ink system ENWW
