HP Latex 3000 Series User Manual

Replace a pinchwheel submodule
Prepare to replace a pinchwheel submodule
▲
Ensure that you have the Pinchwheel Assembly (CZ056-67097), which is included in the Standard
Uptime Kit (D4J02A).
Replace a pinchwheel submodule

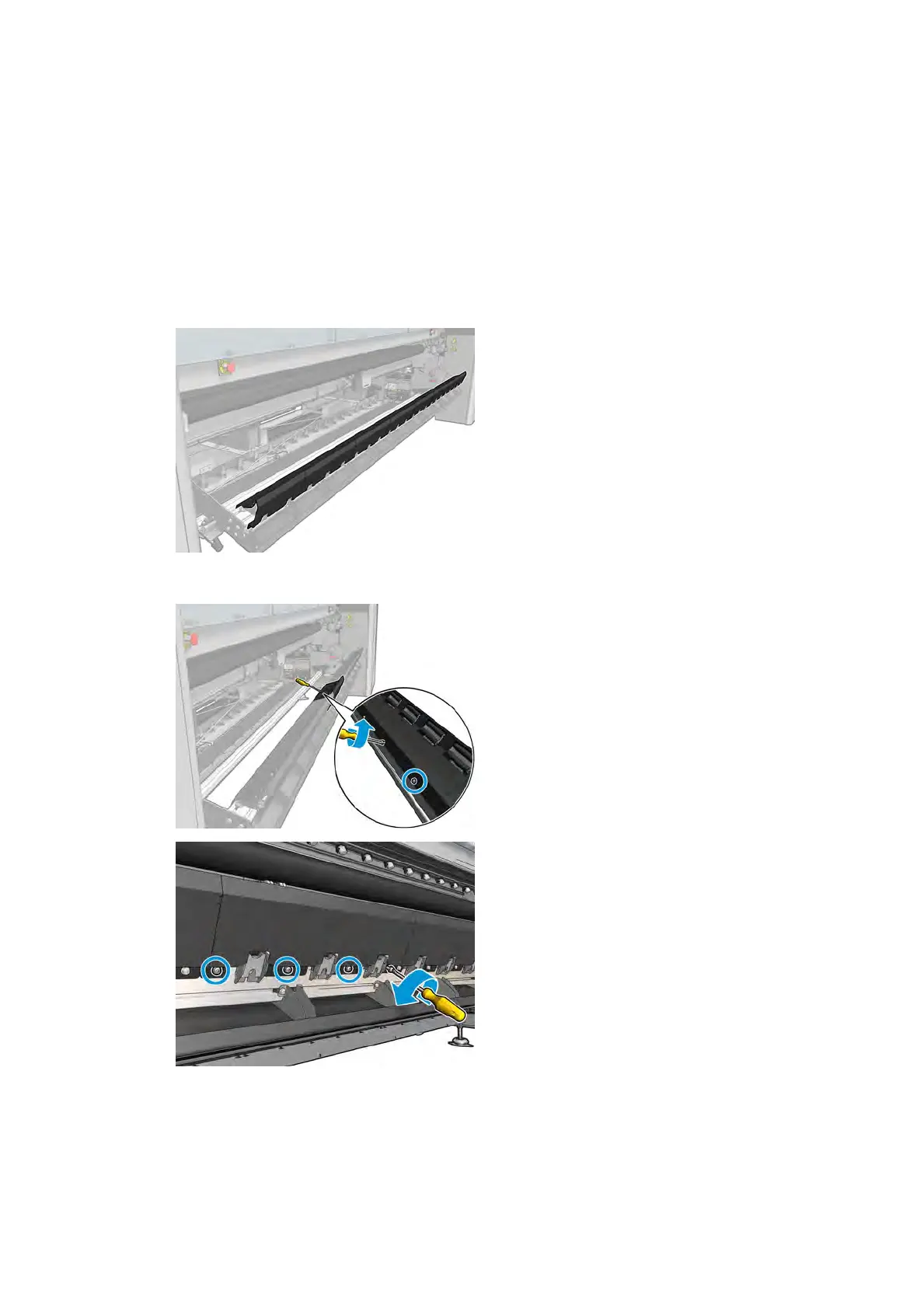

1. Open the loading table.
2. Locate the pinchwheeel submodule that needs replacement.
3. Remove the screws shown below.
234 Chapter 8 Hardware maintenance ENWW
