4. Repeat the above two steps as many times as needed to remove any visible ink stains on the glass.

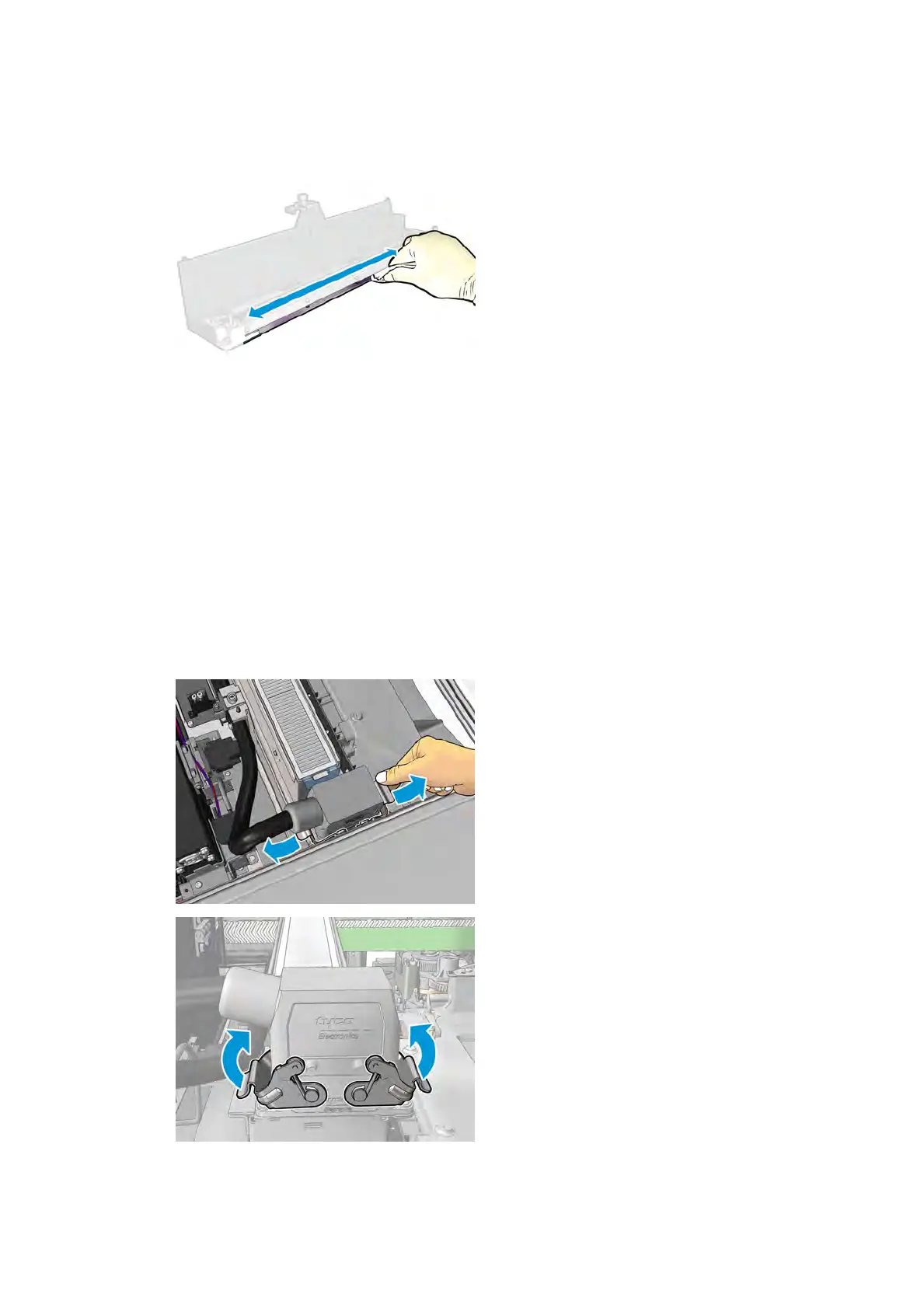

5. Clean the air outlet using the same damp cloth.
Reassemble the drying module
1. R
eassemble the drying lamps with the drying quartz and air outlet. Check that the cables are properly
routed inside the module before assembly.
2. Insert the three screws.
3. Ensure that the cleaned parts are completely dry and all vapor has completely evaporated before
turning on the printer.
Reinstall the drying module
1. Install the drying module into the carriage and tighten the three screws that attach it to the carriage.
2. Reconnect the electrical connector and close the latches.
220 Chapter 8 Hardware maintenance ENWW
