Risk of burns Crush hazard Risk of trapped îžngers Hazardous moving
part
Light radiation hazard Electric shock hazard
For more safety information, see Safety precautions on page 2

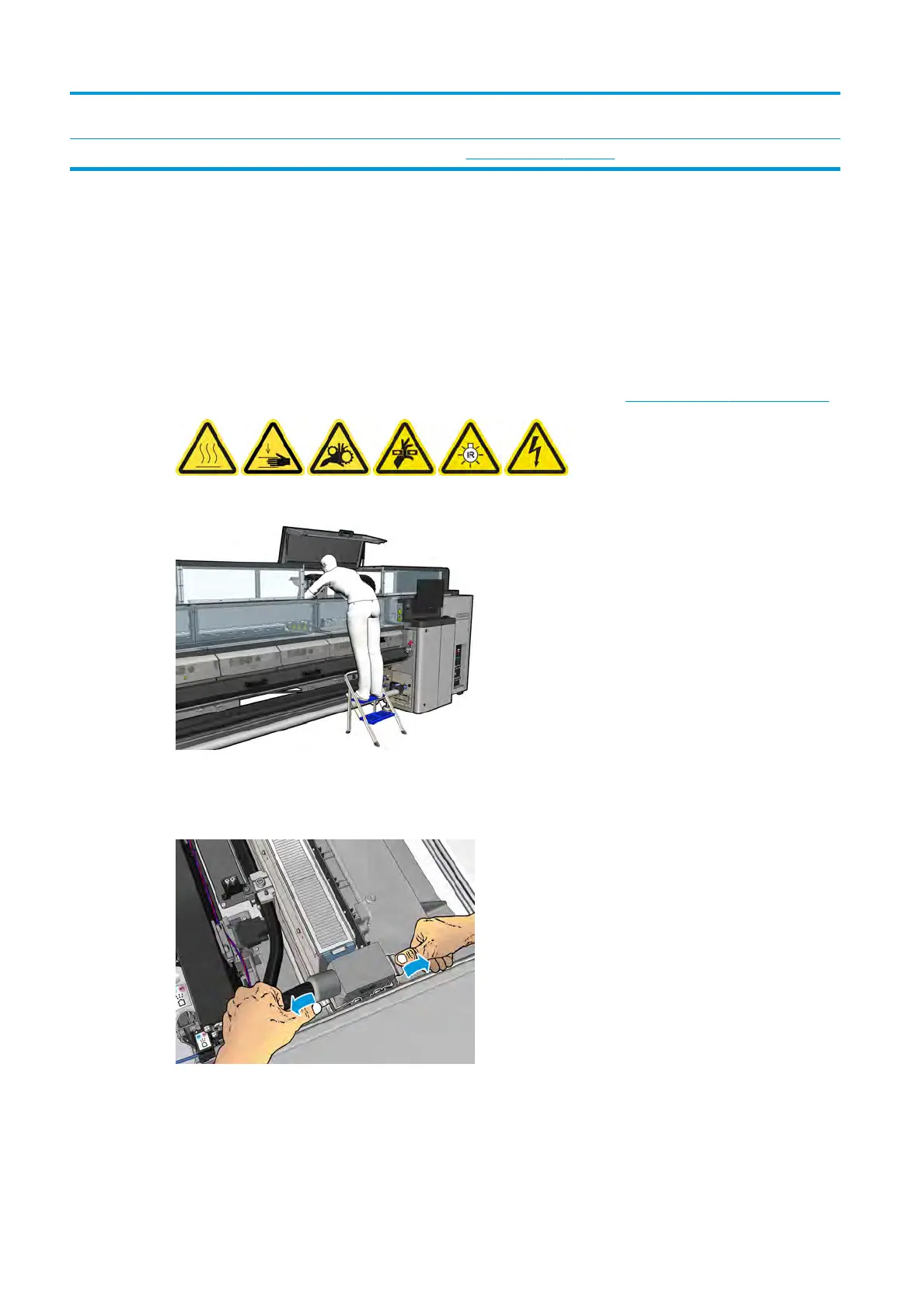

Prepare to replace the drying quartz glass
1. Ensure that you have the necessary Drying Quartz Glass Kit: for the left drying module (CZ056-67253) or
the right drying module (CZ056-67252). Both kits are included in the Standard Uptime Kit (D4J02A).
2. Ensure that the printer is not printing.
3. Ensure that all windows, covers, and doors are closed and remain in their original position.
4. Move the carriage to the service position.
5. Turn oîž« the printer in the correct way for maintenance operations: see Turn the printer oîž« on page 160.
6. Stand on the folding steps and open the service position window.
Remove the drying module
1. R
emove the electrical connector latch.
248 Chapter 8 Hardware maintenance ENWW
