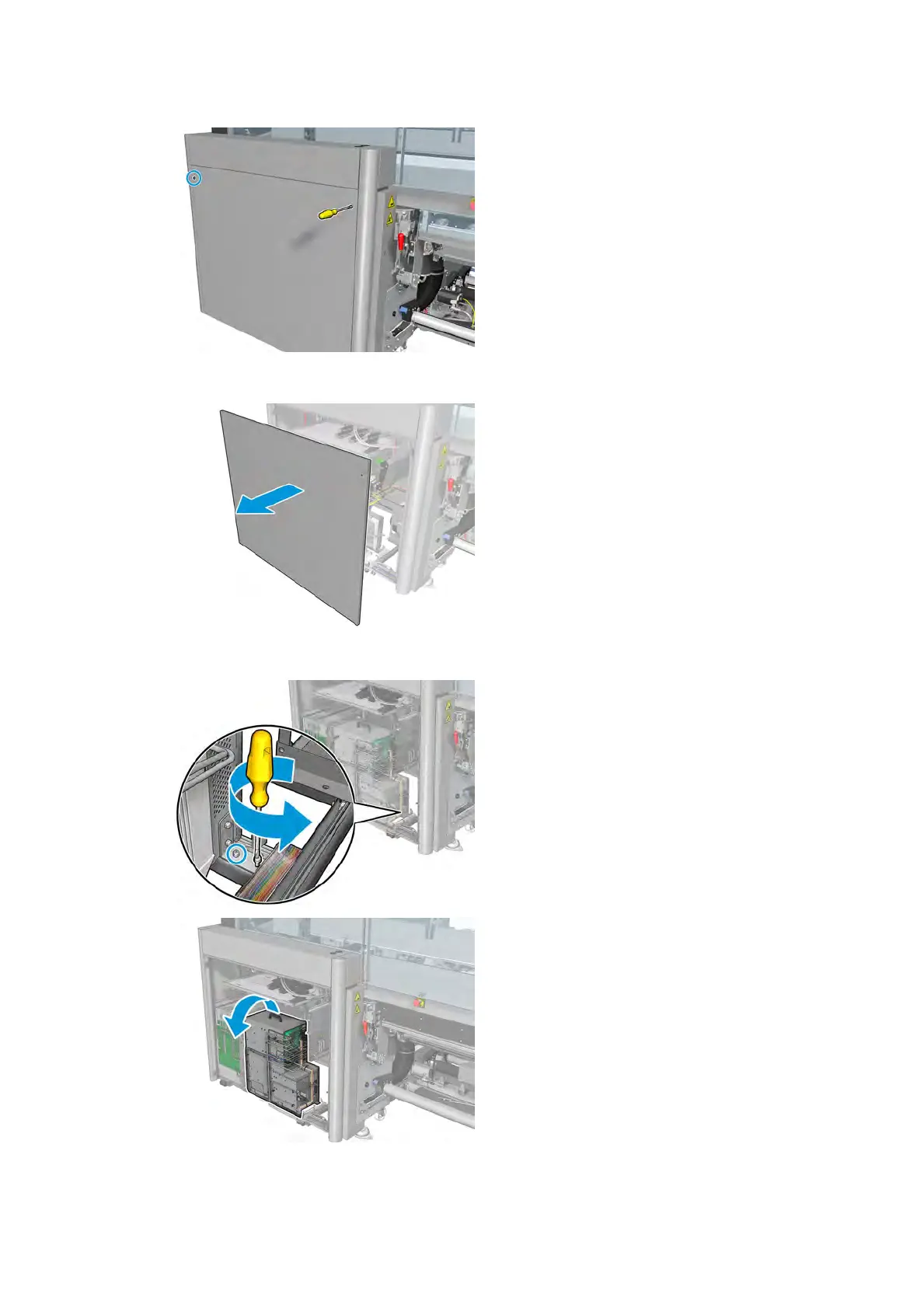

3. Remove the two pointed T-20 screws that attach the rear right panel assembly.
4. Remove the rear right panel assembly.
5. Remove the two T-20 screws from the e-box support and pull it out carefully.
