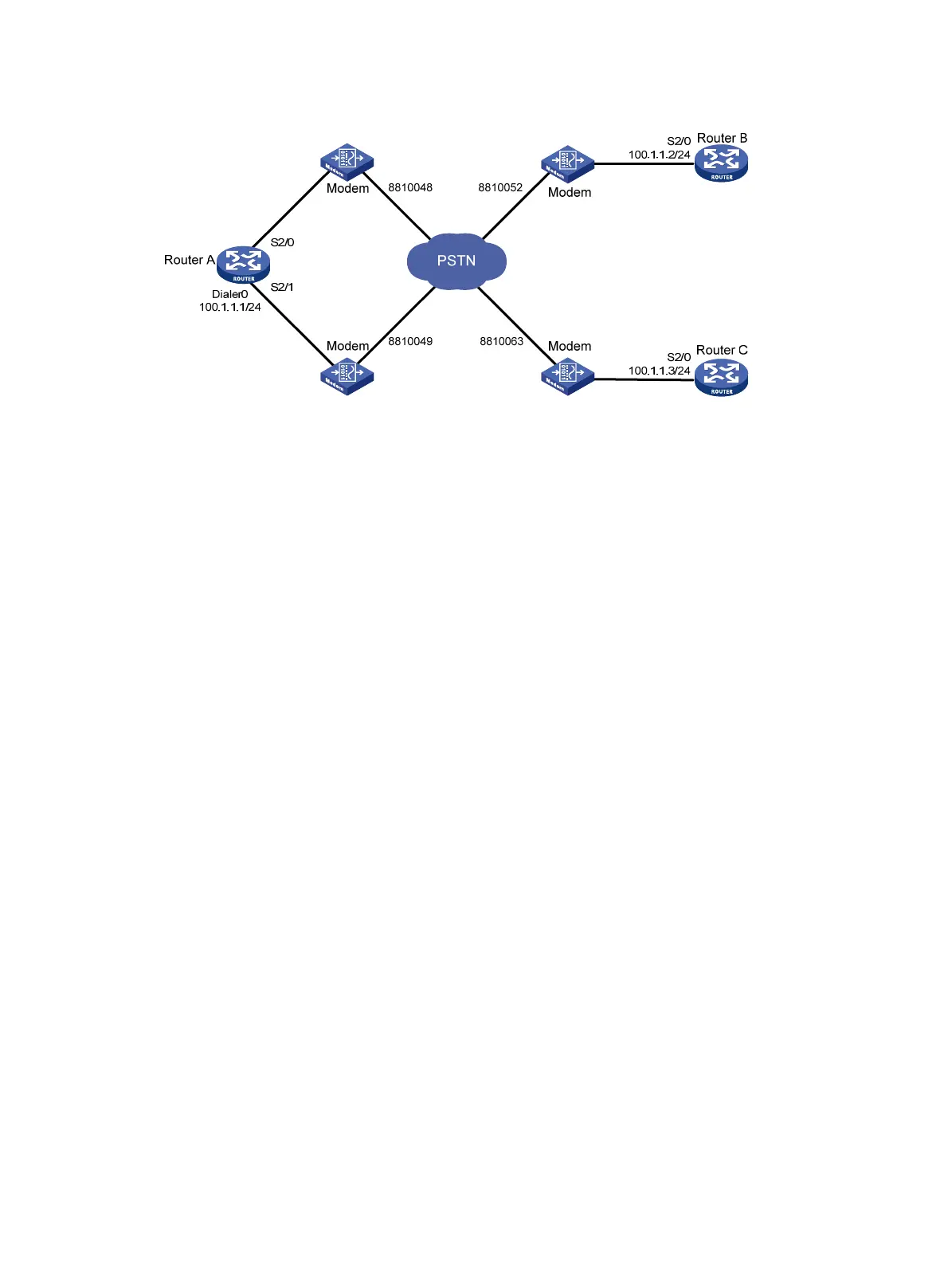

Figure 47 Network diagram

Configuration procedure

1. Configure Router A:

# Configure a dial access control rule for dialer access group 1.

<RouterA> system-view

[RouterA] dialer-rule 1 ip permit

# Assign an IP address to interface Dialer0, associate dialer access group 1 with the interface,

enable C-DCC, and configure dial strings for calling Router B and Router C.

[RouterA] interface dialer 0

[RouterA-Dialer0] dialer enable-circular

[RouterA-Dialer0] ip address 100.1.1.1 255.255.255.0

[RouterA-Dialer0] dialer-group 1

[RouterA-Dialer0] dialer route ip 100.1.1.2 8810052

[RouterA-Dialer0] dialer route ip 100.1.1.3 8810063

[RouterA-Dialer0] quit

# Set interface Serial 2/0 to operate in asynchronous protocol mode and assign it to dialer

circular group 0.

[RouterA] interface serial 2/0

[RouterA-Serial2/0] physical-mode async

[RouterA-Serial2/0] async mode protocol

[RouterA-Serial2/0] dialer circular-group 0

[RouterA-Serial2/0] quit

# Configure interface Serial 2/1 to operate in asynchronous protocol mode and assign it to

dialer circular group 0.

[RouterA] interface serial 2/1

[RouterA-Serial2/1] physical-mode async

[RouterA-Serial2/1] async mode protocol

[RouterA-Serial2/1] dialer circular-group 0

[RouterA-Serial2/1] quit

# Enable modem dial-in and dial-out on user interfaces to be used.

[RouterA] user-interface tty1

[RouterA-ui-tty1] modem both

[RouterA-ui-tty1] quit

[RouterA] user-interface tty2
