• On Router C, interface Dialer0 is assigned an IP address 122.1.1.2/24.

• The Dialer0 interfaces on Router A and Router B are located on the same network segment, so

are the Dialer1 interface on Router A and the Dialer0 interface on Router C.

Configure RS-DCC to allow Router A to call Router B and Router C from multiple interfaces but

disable Router B and Router C from calling each other.

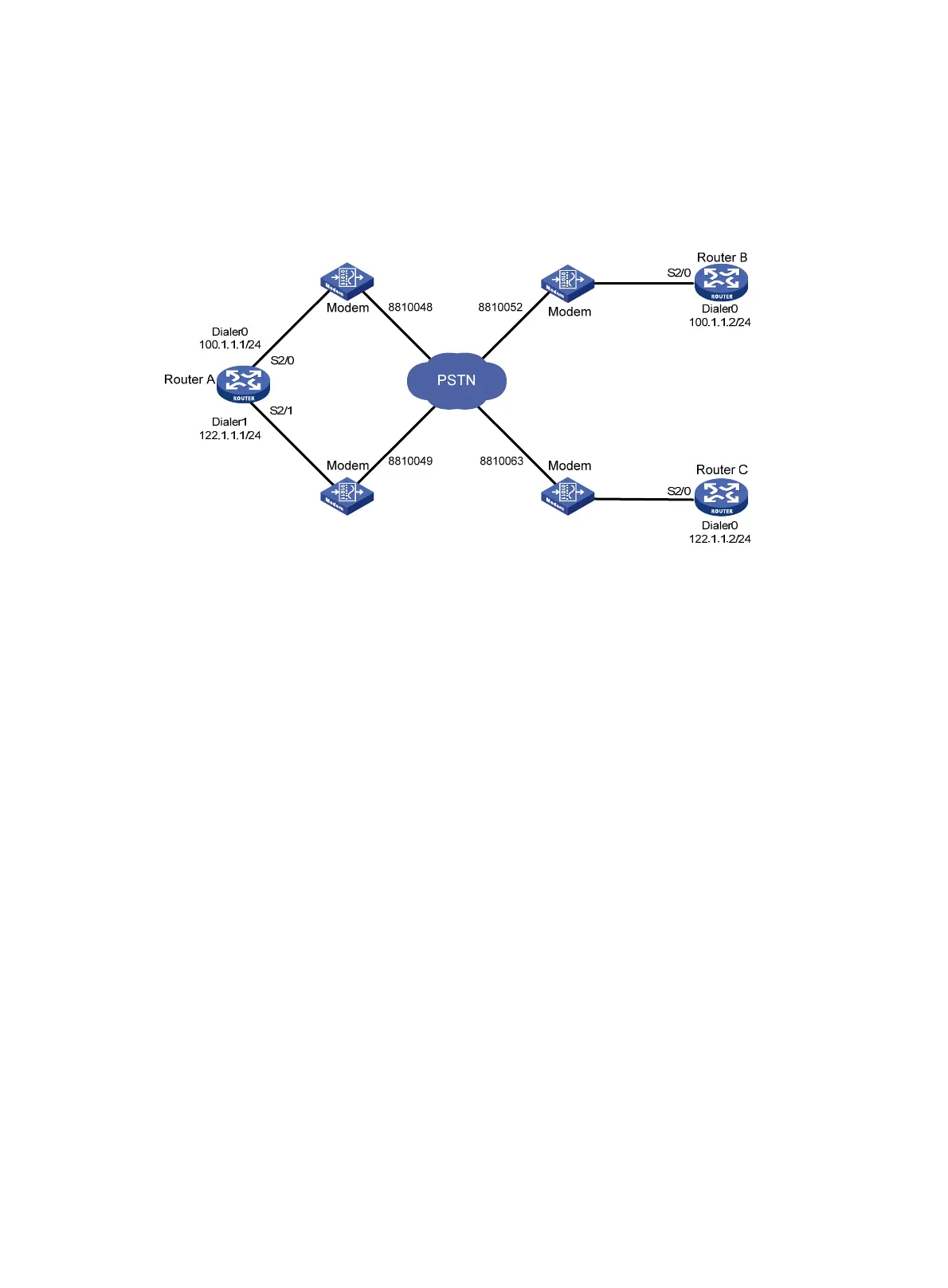

Figure 48 Network diagram

Configuration procedure

1. Configure Router A:

# Configure a dial access control rule for dialer access group 1. Create local user accounts

userb and userc for Router B and Router C, and configure PPP authentication for them.

<RouterA> system-view

[RouterA] dialer-rule 1 ip permit

[RouterA] local-user userb

[RouterA-luser-userb] password simple userb

[RouterA-luser-userb] service-type ppp

[RouterA-luser-userb] quit

[RouterA] local-user userc

[RouterA-luser-userc] password simple userc

[RouterA-luser-userc] service-type ppp

[RouterA-luser-userc] quit

# Assign an IP address to interface Dialer0, enable RS-DCC, and configure the remote

username allowed to call in.

[RouterA] interface dialer 0

[RouterA-Dialer0] ip address 100.1.1.1 255.255.255.0

[RouterA-Dialer0] dialer user userb

[RouterA-Dialer0] dialer bundle 1

# Configure information for PPP authentication and the dial strings on interface Dialer0.

(Assume PAP is used at the local end.)

[RouterA-Dialer0] dialer-group 1

[RouterA-Dialer0] ppp authentication-mode pap

[RouterA-Dialer0] ppp pap local-user usera password simple usera

[RouterA-Dialer0] dialer number 8810052

[RouterA-Dialer0] quit
