168

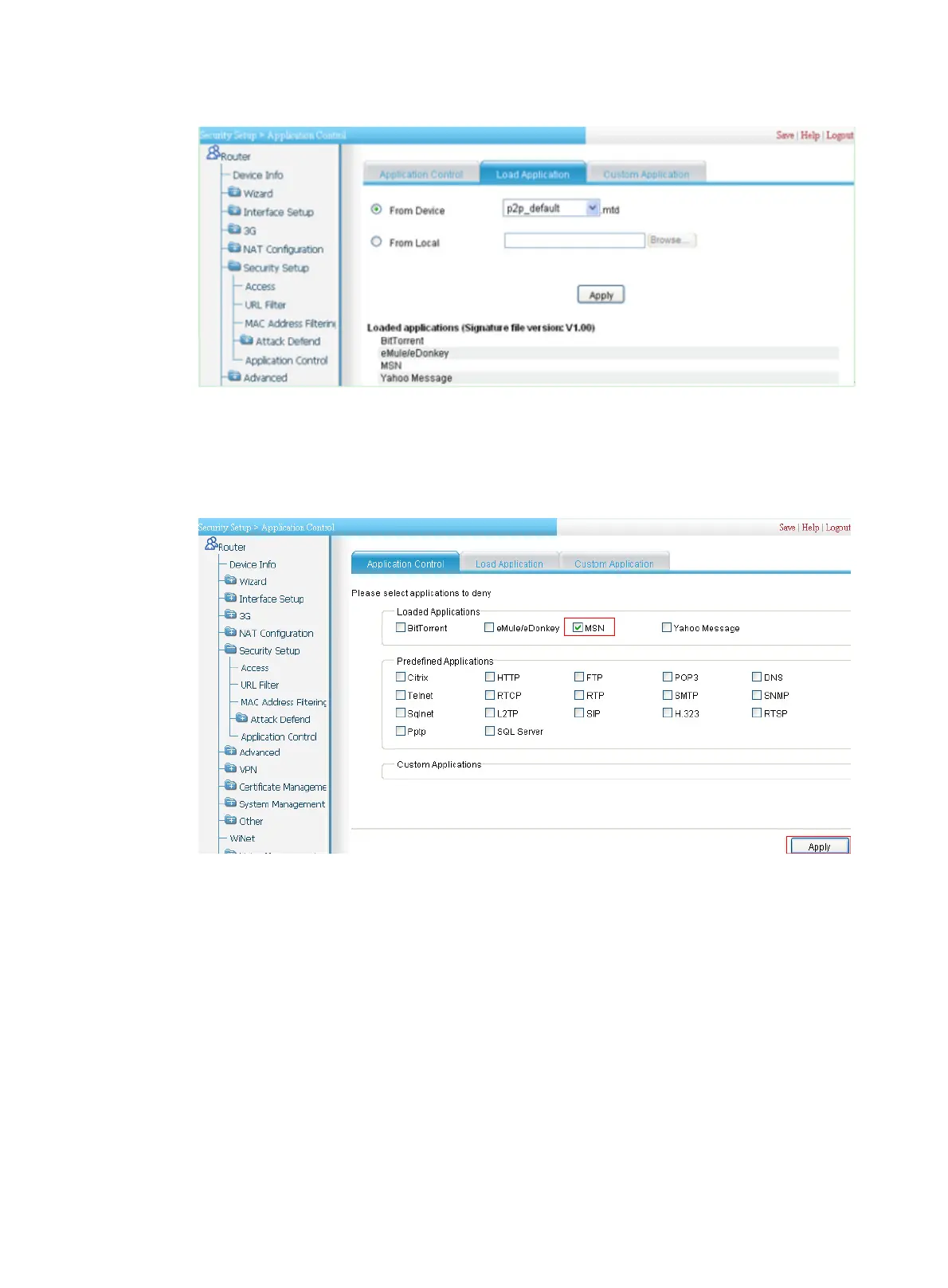

Figure 181 Loaded applications

# Enable application control.

• Click the Application Control tab and then perform the following configurations, as shown

in Figure 182.

Figure 182

Con

figuring application control

• Select MSN from the Loaded Applications area.

• Click Apply.
