HPE FlexNetwork MSR Series

270

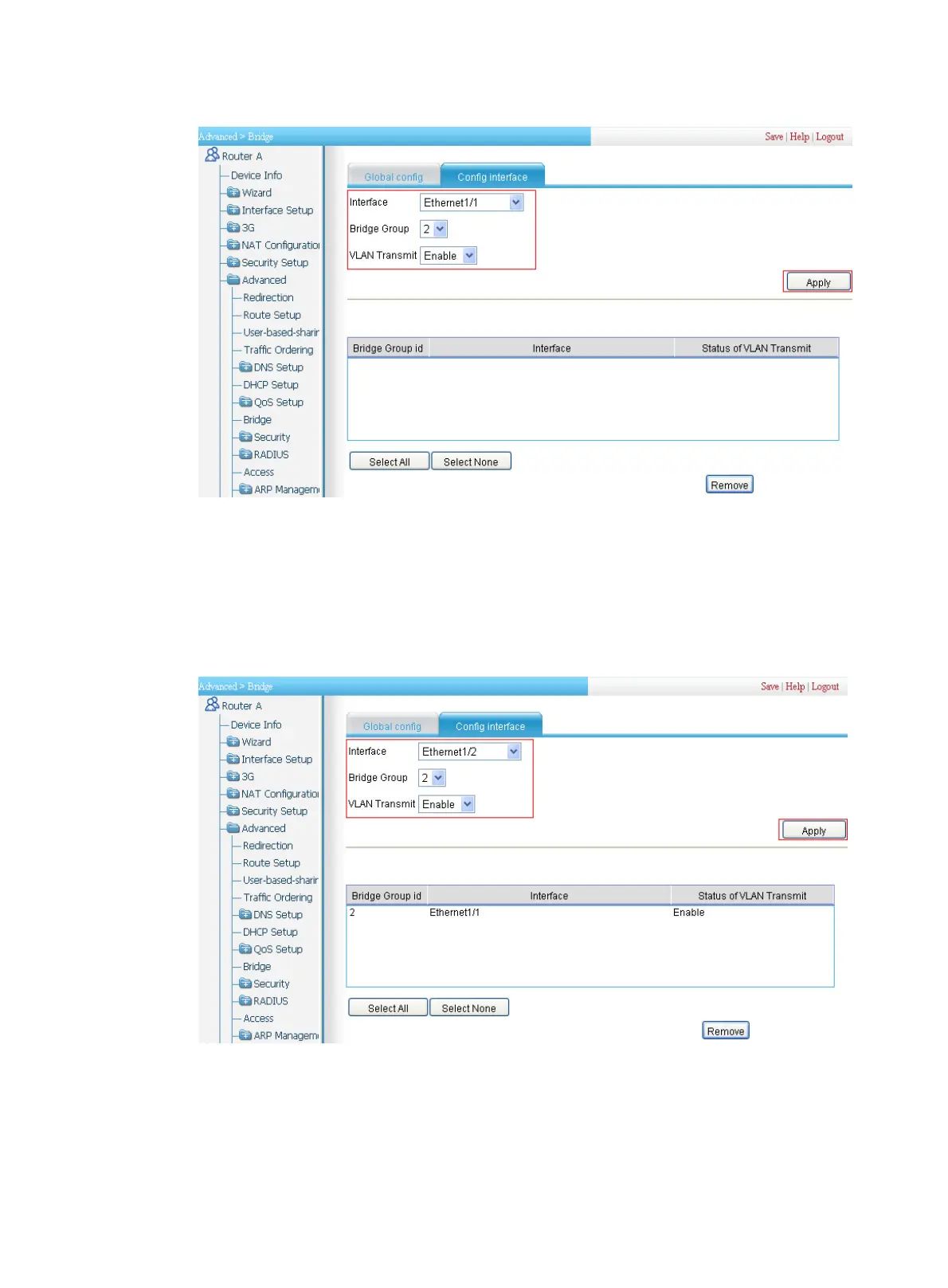

Figure 293 Assigning Ethernet 1/1 to bridge set 2 and enable VLAN transparency
b. Select Ethernet1/1 from the Interface list.
c. Select 2 from the Bridge Group list.
d. Select Enable from the VLAN Transmit list.
e. Click Apply.
# Assign Ethernet 1/2 to bridge set 2, and enable VLAN transparency.
Figure 294 Assigning Ethernet 1/2 to bridge set 2 and enable VLAN transparency
b. Select Ethernet1/2 from the Interface list.
c. Select 2 from the Bridge Group list.
d. Select Enable from the VLAN Transmit list.
e. Click Apply.
2. Configure Router B in the same way Router A is configured.
