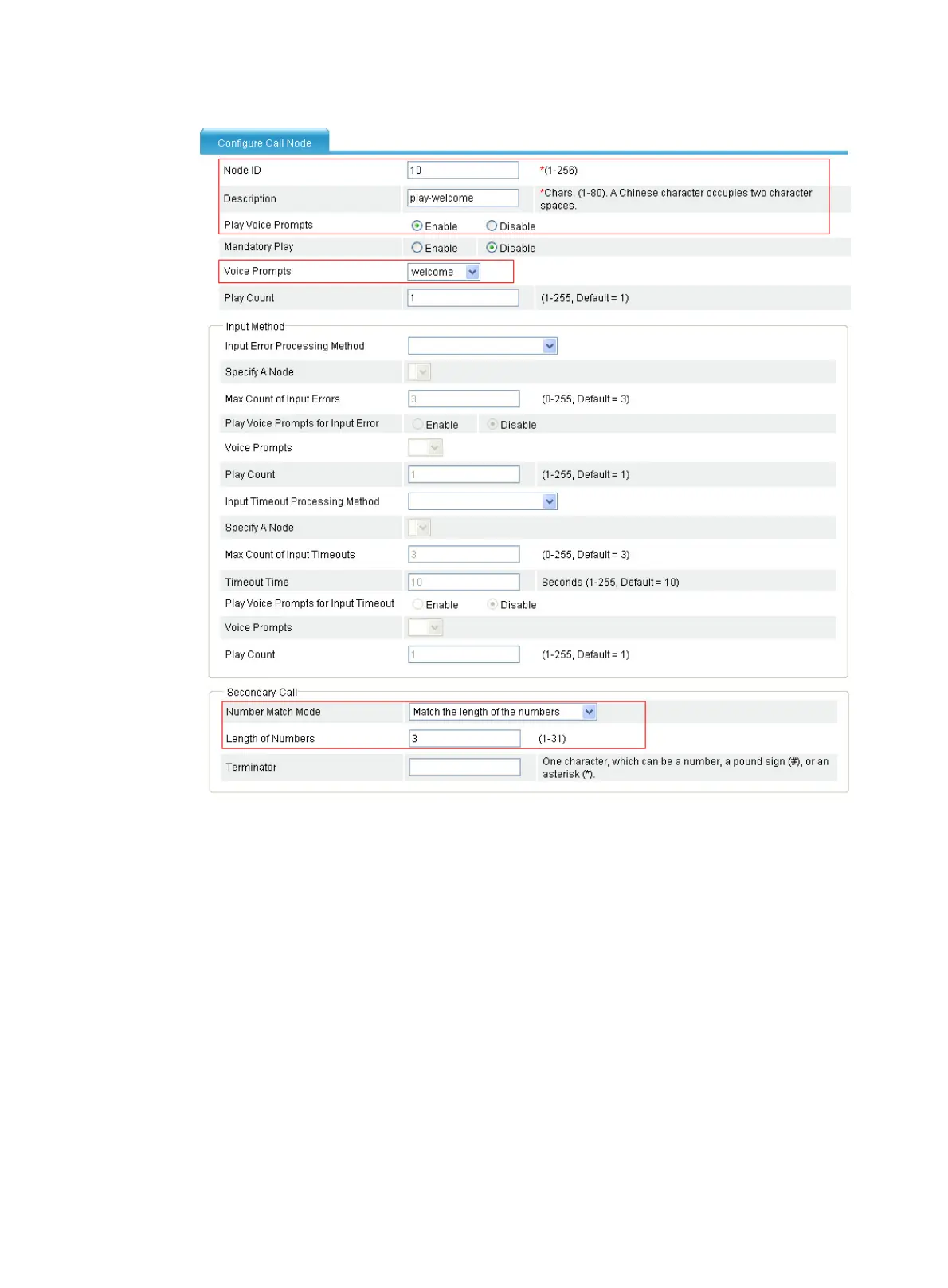

Figure 798 Configuring the call node

a. Type 10 for Node ID.

b. Type play-welcome for Description.

c. Select Enable for Play Voice Prompts; select welcome from the Voice Prompts list.

d. Select Match the length of the numbers from the Number Match Mode list; type 3 for

Length of Numbers.

e. Click Apply.

For other settings, see Configuring Router B.

Verifying the configuration

1. Dial 300 at Telephone A.

Router B plays the audio file welcome.wav.

2. Dial 500.

Telephone B2 rings.
