5. Operation of MEC Related Controllers
284

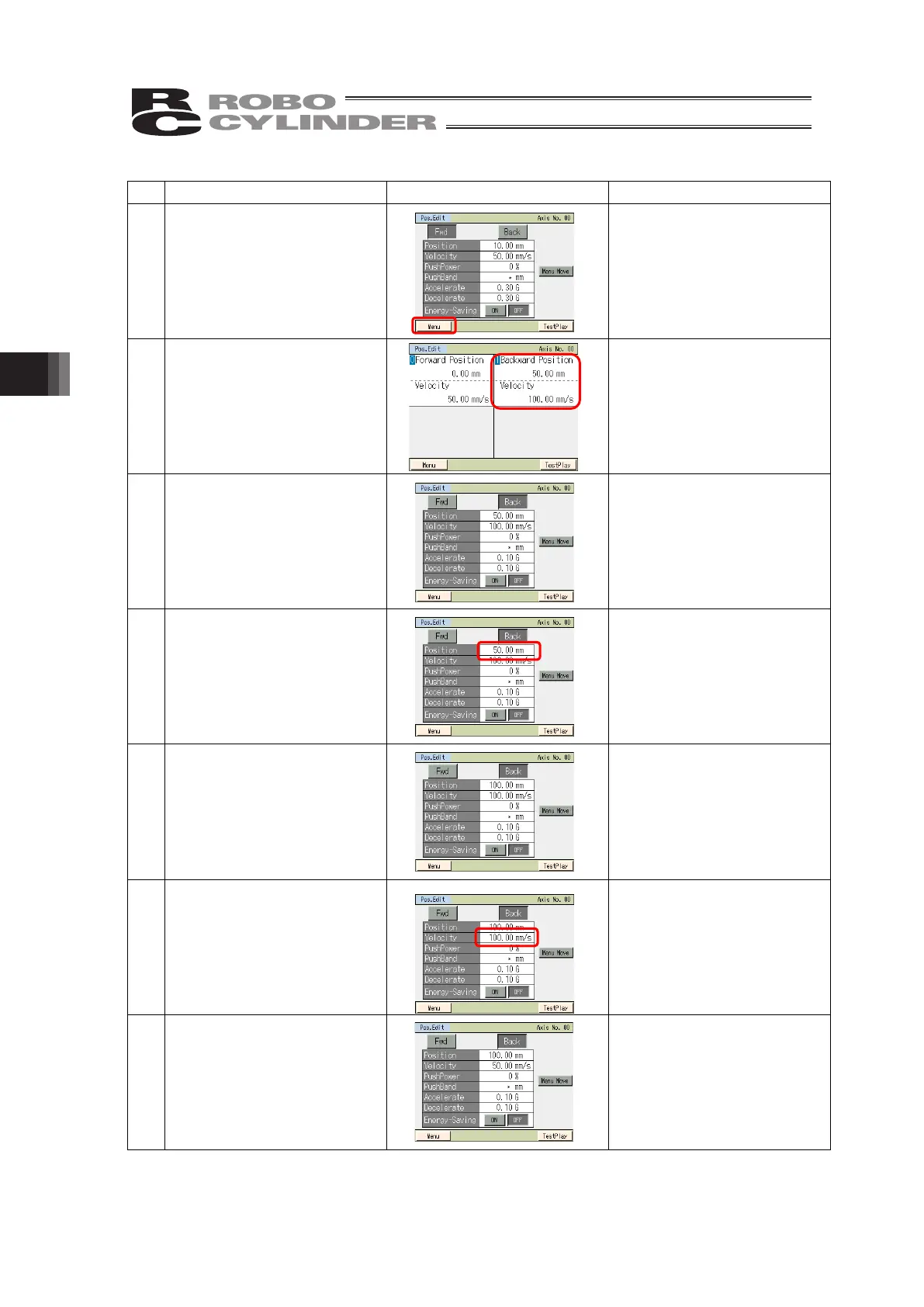

No. Operation Screen Remarks
12 Touch [Menu].
13 Set the position relating to the
end point, acceleration, and
deceleration.
Touch [Backward Position].
Touch [Menu] to return to the
MEC menu screen.
14 The display switches to the
end point screen.
Set the position relating to the
end point, acceleration, and
deceleration.
Touch [Menu] to return to the
position setting screen.
15 Touch the value field of
position.
When the numeric keypad is
displayed, touch [1], [0], [0],
and then [ENT].
Touch [Menu] to return to the
position setting screen.
16 “100.00” is shown in the
position field.
Touch [Menu] to return to the
position setting screen.
17 Touch the value field of
velocity. When the numeric
keypad is displayed, touch [5],
[0], and then [ENT].
Touch [Menu] to return to the
position setting screen.
18 “50.00” is shown in the speed
field.
Touch [Menu] to return to the
position setting screen.
