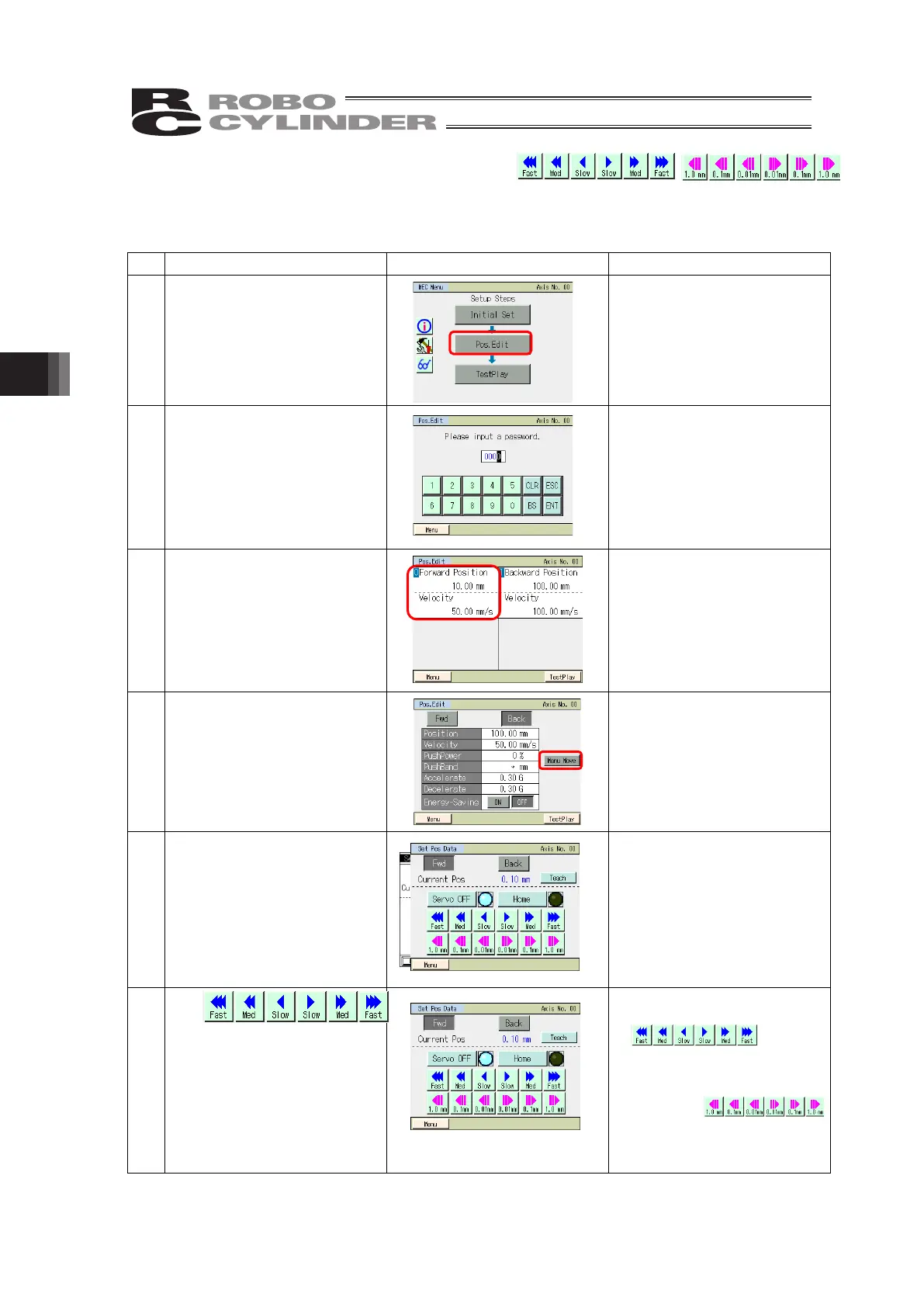

5. Operation of MEC Related Controllers
286
2) Manual axis operation
(jogging/inching) (Using ,
jog/inch the actuator to the target position, and then loading the achieved position (current
position) as the end point or start point)
An example of stopping at 2 points is explained.
How to load the current position of 80.0 m as the start point is explained.
No. Operation Screen Remarks
1 Touch [Pos.Edit] on the MEC
menu screen.
2 If the position data edit
password is not “0000,” the
password entry screen
appears.
Enter the position data edit
password and touch [ENT].
A position data edit password
can be set in the “position data
edit password” field of the
parameter edit screen.
3 Set the position relating to the
start point, acceleration, and
deceleration.
Touch [Forward Position].
Touch [Menu] to return to the
MEC menu screen.
4 Touch [Manu Move]. Touch [Menu] to return to the
position setting screen.
* If home return is not yet
complete, perform home
return first.
5 If the motor power (servo) is
currently OFF, touch [Servo
ON] to turn ON the motor
power (servo).
6
Use
to
move the slider or rod to the
target position of 80.0 mm.
Jogging
Touch any
of , and the
axis will move and continue
moving.
Inching
Touch any of,
and the axis will move by the
distance corresponding to the
button
ou have touched.
To Next Page
