Keysight N9915-90020 User’s Guide 697
Noise Figure Mode (Option 356)
How to Define a Noise Figure Measurement

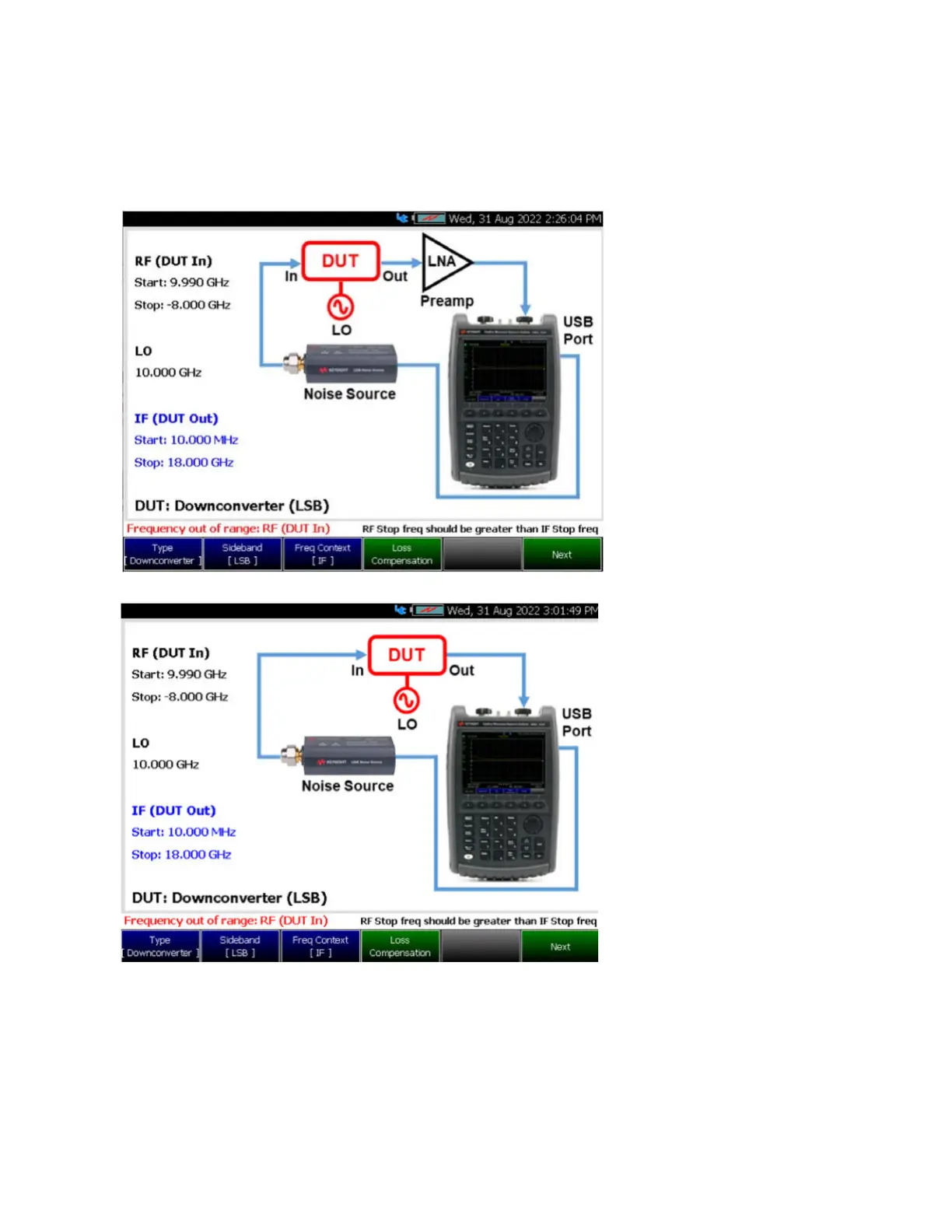

Figure 29-16 DUT – Measurement Setup – Type [Downconverter] Screen –
ENR Mode: Smart (Auto)
USB Smart Mode DUT
Wizard visibility:
– Setup shows that
Preamp is visible
because a User Cal is
applied
– DUT (shows LO if
frequency converting)
DUT – Measurement Setup – Type [Downconverter] with External Amplifier (LNA) –
ENR Mode: Smart (Auto)
USB Smart Mode DUT
Wizard visibility:
– Setup shows that
Preamp is not visible
because no User Cal is
applied
– DUT (shows LO if
frequency converting)
