PROG P0: Play RT Control (Realtime Control)
17
Audio Play/Mute:
MIX PLAY/MUTE 1...4 switches
These switch each audio input between play/muted status.
The switch LED will be lit for Play, or dark for Mutes status.
Audio Play/Mute 1...4 [Play, Mute]
Play: The input will be enabled.
Mute: The input will be muted.
Audio Solo:
Panel-Switch Solo Mode On and MIX PLAY/MUTE
1–4 switches
Solo applies to oscillator 1 and 2, the drum track, and the
audio inputs. For more information, please see “OSC Solo:”
on page 15.
Exclusive Solo
For more information, please see “OSC Solo:” on page 15.
Audio Solo 1...4 [Play, Mute]
This switches the Solo On/Off setting for each audio input.
Note: The Solo On/Off setting is not preserved when you
write.
Audio Volume:
MIX VOLUMES sliders 1...4
Audio Volume 1...4 [000...127]
This adjusts each audio input level.
RT Control (Realtime Control)
Realtime Control lets you use the eight sliders to edit the
parameters of a program or effect. The switches will control
the effect on/off status.

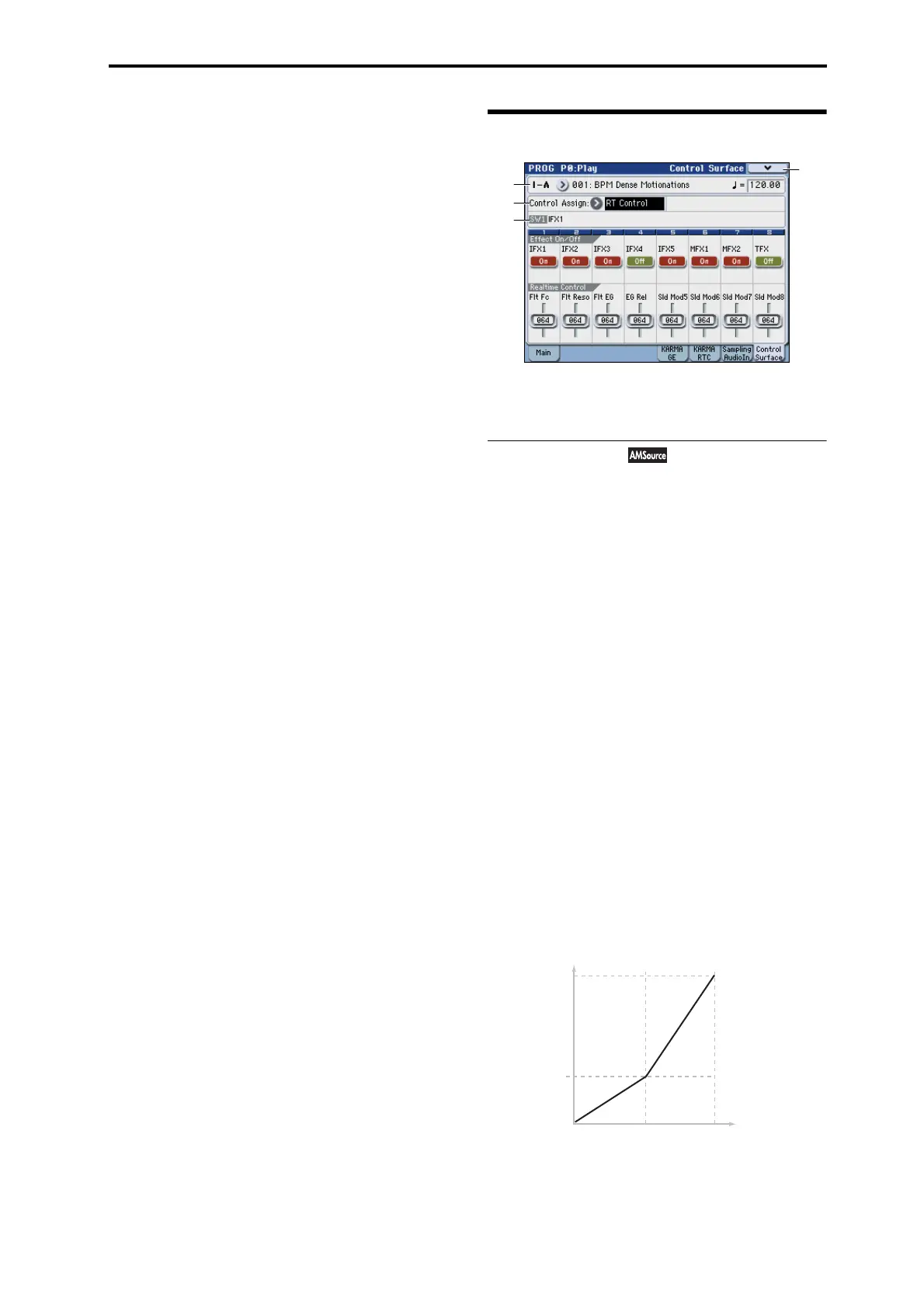

0–8e: RT Control
Selected Parameter information
When you select a Slider or Switch, this area shows detailed
information about its parameter assignments.
Effect On/Off:
Effect On/Off switches 1...8
These turn each effect on/off. The effect will be enabled if
this is on (LED lit).
IFX1...5, MFX1, 2, TFX [Off, On]
These turn each effect on/off.
Realtime Control:
Realtime Control sliders 1...8
Sliders 1–4 all have dedicated functions which correspond
to MIDI CCs. Sliders 5–8 can be assigned to a wide variety of
functions, many of which also have corresponding MIDI
CCs.
When you move a slider, it sends out the corresponding
MIDI CC.
Unless otherwise noted, “scaling” means that the
parameters are at their programmed values when the
controller is at 64, at their minimum when the controller is at
0, and at their maximum when the controller is at 127. For
another look at this, please see the diagram below.
CC parameter scaling
Slider 1: Flt Fc (Filter Cut Off) [000...127]
This slider scales the cutoff frequencies of Filters A and B,
and transmits and receives MIDI CC #74.
0–8a
0–8e
0–8b
0–8
Menu
99
00
640 127
CC Value
Parameter
Value
As Programmed
